Drawing or Sample Led

Rapid Cable Assembly & Wire Harness Prototyping

Build a controlled sample to evaluate fit, pinout, materials and handling before production release. Define quantity, revisions and test scope in the RFQ.

Drawing or sample led
Define the build inputs
Test plan agreed per drawing
Specify checks and acceptance
Revision-controlled build notes
Identify each approved change
Sample retention agreed
Reference for repeat orders

Quick answer

A prototype is a controlled build of a drawing or sample to prove fit, pinout, materials and handling. The sample you approve becomes the reference for pilot and production, so approve it against a written acceptance list, not by eye. Parts availability can drive lead time more than build time; check procurement before planning around assembly alone.

As a contract assembler, we manufacture wire harnesses through our wholly owned subsidiary Hebei Cloom. Define the intended sample use, required quantity, revisions and delivery records at quotation. Sample approval must identify the configuration and any open deviations before a separate release decision.

What a sample delivery package should contain

Agree at quotation which of these you need. Delivery includes the documentation package agreed at quotation, typically one or more of these items, rather than every record automatically. Link each requested record to the same assembly number, sample ID and drawing revision so receiving inspection can compare the physical build with its evidence.

Delivery package checklist to agree before the build
ItemWhat it proves or recordsWho needs it
Build sheet with drawing revisionWhich assembly, sample ID and drawing revision were built; links to controlled build notesEngineering, receiving inspection and the build team
BOM: as designed versus as builtExact connector, terminal and cable part numbers; differences recorded rather than hidden behind a family namePurchasing, engineering and the next supplier
Pinout / wiring tableConnection definition, cavity numbering and viewing direction used for assembly and verificationTest engineer and integration team
Test recordWhat was tested, sample ID, test-plan revision, acceptance limits, results and any untested requirementsQuality and the approval owner
Dimensional recordDatum-to-datum measurements against drawing limits, with the path, support and measuring condition statedMechanical engineering and receiving inspection
Photos of both mating ends and labelVisible orientation and label content / position linked to the sample ID; photos alone do not prove electrical performanceIntegration, service and receiving teams
Deviation listWhat differs from the drawing, such as a substituted part, plus disposition, approval and any restriction on useDesign authority, quality and purchasing
Retained-sample statementWhether a reference is retained, by whom, its ID and revision, storage location and agreed retention termsApproval owner and repeat-order coordinator

Resolve missing drawing inputs through engineering drawing review and define coverage through the testing scope. State any material difference explicitly using the connector substitution validation guide.

Before and after: documenting an engineering change between sample rounds

Attach the before and after drawing views to the change record, using the same view direction and datums. Mark the affected feature and connect it to the sample finding, revised BOM or wiring table, and re-test decision. A changed photograph without a revised drawing does not define the next build.

Before / after drawing attachment template: placeholders only, not measured findings
Drawing viewBefore: superseded revisionAfter: proposed new revision
Mating-end / connector view[attach view; identify part number, latch datum and viewing direction][attach same view; mark e.g. revised connector exit orientation]
Dimension / wiring / label detail[attach affected detail and its drawing reference][mark changed feature; link revised dimension, pin table, label or test note]
Drawing control[drawing ID / previous revision / sample ID][same drawing ID / new revision / change ID / approval status]
Change-record template: complete for each proposed change; no results are implied
FieldBlank template entry
Change ID[enter unique change reference]
Drawing revision: before → after[previous revision] → [new, unused revision]
What changed[e.g. connector exit orientation; attach marked-up before and after views]
Why: finding from sample N[sample ID / round N] [finding reference and reason for change]
Affected dimension / pin / label / test[drawing feature] [linked wiring table, BOM, label or test-plan revision]
Re-test needed Y/N[Y or N] [justification] [checks to repeat and result-record reference]
Approved by / date[authorised approver] [approval date] [release scope]
  • Keep one change log per drawing and link each entry to its before and after attachments.
  • Never re-use a revision letter. Keep the superseded drawing available for traceability and identify the current approved revision.
  • Mark superseded samples and separate them from approved references so they do not get mixed into pilot lots.
  • Record why a re-test is or is not needed. Revisions are quoted per change or confirmed at quotation before another build.

Lead time is a sum of stages, procurement first

Assumed example only: these are not this business's lead times. All durations below are assumed working days. Check procurement first when planning; the sequential model assumes drawing review is complete before ordering. In-stock parts add no procurement wait in this example. The model ends at dispatch and excludes carrier transit and customer approval or revision delays.

Assumed stage durations in working days
StageAll parts in stockLong-lead connector on order
Drawing review22
Procurement of connectors/cable (extra wait)015
Build44
Test and records11
Packing and dispatch11

Sequential elapsed time = drawing review + procurement + build + test and records + packing and dispatch. Procurement share = procurement working days / total elapsed working days × 100%.

Assumed elapsed times and derived procurement shares
Assumed scenarioElapsed-time calculationProcurement duration / elapsed time
All parts in stock; sequential2 + 0 + 4 + 1 + 1 = 8 working days0/8 = 0.0%
Long-lead connector on order; sequential2 + 15 + 4 + 1 + 1 = 23 working days15/23 = 65.2%
On-order variant; review and procurement overlap23 - 2 = 21 working days15/21 = 71.4%

The overlap variant assumes 2 working days of drawing review and procurement run together: elapsed time = sequential total − overlap. Review and procurement can overlap only if parts are ordered before the drawing is frozen, which carries a rework risk if the design changes. The connector wait itself stays the same. Its share uses the full procurement duration over the shorter elapsed time; overlapping stage shares are not additive.

Urgent requests are reviewed against material availability and agreed scope.

Sample acceptance rules: write them before the sample arrives

Agree the requirements, inspection method, evidence and decision owner before dispatch. Record the disposition against the identified sample and drawing revision; a fit check alone does not close the electrical, workmanship or documentation requirements.

Disposition rules to agree with the approval owner
DecisionWritten acceptance ruleNext action
AcceptThe sample meets the agreed requirements and the required evidence is complete for the stated use.Sign the sample record and identify the approved configuration; authorise the next stage separately.
Conditional acceptA named deviation is approved in writing for a limited purpose, with restrictions, an owner and a closure condition.Restrict the sample to that purpose; hold unrestricted pilot or production release until the condition is closed.
RejectAn agreed requirement is not met, or missing evidence prevents acceptance and no approved concession exists.Segregate the sample, record the issue and agree correction, re-test or a revised sample.

Check on receipt, in this order

  1. Identification and revision: match the sample ID and build sheet to the intended assembly and drawing revision. Isolate a superseded or unidentified sample.
  2. Connector part number and orientation: compare exact housing, terminal and mating references, keying, latch position and drawing view direction.
  3. Pinout: compare the wiring table with a continuity / wiremap check under the agreed plan before powered evaluation. Continuity and pinout checks are the baseline where the drawing calls for them; record what was checked.
  4. Length: measure datum to datum using the stated path, supports, connector seating and measuring condition. Compare with the drawing limits. For routed harnesses, agree whether a wire harness board defines that condition.
  5. Labels: compare content, legibility, orientation and position with the approved label definition.
  6. Mating: check fit, keying, latching and routing with the real counterpart under the agreed safe test conditions. A similar-looking connector is not a mating reference.
  7. Crimp / strip workmanship: visually inspect against the agreed criteria. IPC/WHMA-A-620 is a common cable and harness workmanship standard; choose the applicable class and edition on the drawing. Visual review does not replace other checks required by the test plan.
  8. Records: reconcile test and dimensional records, as-built BOM, photos, deviations and retained-sample details with the package agreed at quotation. Record unresolved requirements before disposition.

What to freeze on approval

Freeze pinout, labels, lengths and measuring conditions, shielding method, test sequence and the as-built BOM. Link them to the approved drawing revision and reference sample. Close deviations or state their restricted use in writing. Subsequent changes need a controlled revision and review of affected tests before pilot or production release.

First article vs prototype vs pilot: where the release boundary sits

A prototype answers design questions. A first article checks conformance to the nominated release definition. A pilot evaluates the proposed production method. Approval of a sample is not an automatic production order: the release owner must accept the configuration, records and closed deviations for the next stage. The quantity descriptions below explain the stages, not an MOQ or a quantity commitment.

Stage comparison: agree the actual quantity and approval roles at quotation
StagePurposeTypical quantity descriptionWhat is allowed to changeRecord keptWho approves
PrototypeProve design assumptions about fit, pinout, materials and handlingOne to a fewDesign details may change through a recorded revision; state any non-production materialsSample findings, build revision, deviations and agreed test recordsCustomer design authority approves the next design step
First articleCheck a build against the proposed release definition, including after supplier transferOne to a fewNo unapproved departures from the nominated drawing, BOM or test planComparison with the approved reference and specified inspection / test evidenceCustomer design authority and nominated quality approver accept the defined scope
PilotEvaluate the proposed production method on a limited lotSmall lotProcess refinements need review; product changes need a new controlled revision and validationLot build notes, traceability, agreed test results and closed actionsCustomer release owner with engineering and quality input authorises production
ProductionRepeat the released assembly definitionReleased lotsOnly authorised changes with assessed revalidation and a defined introduction pointReleased BOM / instructions, lot records and agreed test evidenceNominated quality / release authority under the agreed control plan

Supplier transfer: compare the complete reference package

Compare a new supplier's first article against the approved reference sample, drawing revision, as-built BOM and test plan together. If those references disagree, resolve the discrepancy with the design authority before approval. A worn field sample alone cannot establish the released dimensions or hidden construction. Confirm retention and identification of the approved reference.

Connector orientation, pinout and shield termination deserve explicit comparison for engineering reasons: opposite viewing directions can mirror a cavity map, a housing can fit while circuits are assigned differently, and a similar outer sleeve can conceal a different shield connection. These are ambiguity risks, not measured defect frequencies. Document the view direction, cavity mapping and shield termination detail before accepting equivalence.

Use the first-article inspection guide for the approval record and the prototype-to-production guide for release planning. For legacy transfers, review obsolete connector replacement before approving a substitute. The minimum order quantity guide explains quantity planning; the requirement for this build is confirmed at quotation.

Why Prototype Before Production?

Use a prototype to answer defined fit, electrical and handling questions before committing to production. Record the findings and unresolved deviations so approval has a written basis.

Design Validation

Verify electrical, mechanical, and functional requirements before production, including connector selection, cable flexibility, shielding, and test access.

Functional Testing

Evaluate cable assemblies in the intended application against the agreed functional criteria.

Fit & Form Check

Confirm physical dimensions, connector compatibility, mating orientation, branch lengths, and routing within your assembly.

Controlled Iterations

Record changes from sample findings, then review material, tooling and re-test implications before quoting the next revision.

Stakeholder Review

Physical prototypes help communicate design intent to team members, customers, or investors.

Risk Reduction

Use sample findings to identify issues that need resolution before production release.

Technical Scope

Prototype Scope
Single-ended and double-ended cable assemblies, power leads, signal harnesses, RF and coax leads, shielded cables, overmold-ready designs, and mixed connector builds
Commercial Fit
Prototype, first-article, pilot and validation quantities are agreed per drawing at quotation before repeat OEM purchasing
Typical Inputs
Engineering drawings, pinout tables, BOMs, connector part numbers, mating-device photos, physical samples, routing sketches, and marked-up field assemblies
Verification Options
Tested to the test plan agreed on the drawing; continuity and pinout checks are the baseline where the drawing calls for them. Agree any visual, label, dimensional, insulation resistance, hi-pot or fit checks at quotation.
Prototype Timing
Urgent requests are reviewed against material availability and agreed scope.
Transition Control
Approved sample retention, revision-controlled work notes, test definition carryover, and quotation updates for pilot and production release
Typical Buyers
Australian OEM engineers, sourcing teams, NPI managers, maintenance groups, and product teams validating custom interconnects before scale-up
Out of Scope
PCB assembly, loose component resale, and electromechanical work unrelated to cable assemblies or wire harnesses

Buyer Checklist Before Requesting a Quote

  • Send the exact mating connector part numbers when possible. A similar housing family does not establish mating compatibility.
  • Specify the purpose of the prototype: bench validation, field trial, customer sample, or production-ready first article. That changes how much documentation and testing the build needs.
  • Flag cable flexibility requirements, restricted bending space, and exposure to abrasion, UV, or fluids early so the sample is not built with the wrong jacket or strain-relief concept.
  • If the design is replacing an existing cable, include photos of the installed assembly and both mating ends. This helps avoid unnecessary clarification.
  • Call out what must be frozen after sample approval: labels, lengths, pinout, branch breakout, shielding method, or test sequence.
  • List any deadlines tied to EVT, DVT, field installation, or customer review because prototype value is tied to decision timing, not just shipment speed.

Our Prototype Process

These are workflow stages, not a timed schedule. We manufacture wire harnesses through our wholly owned subsidiary Hebei Cloom.

Submit Request

Share drawings, a sample, or a wiring table, and define the goal: fit and form, field use, or production validation.

Request stage

Engineering Review

Review the drawing, BOM, connector/cable availability, labels, dimensions and test plan before quoting and procuring agreed materials.

Review stage

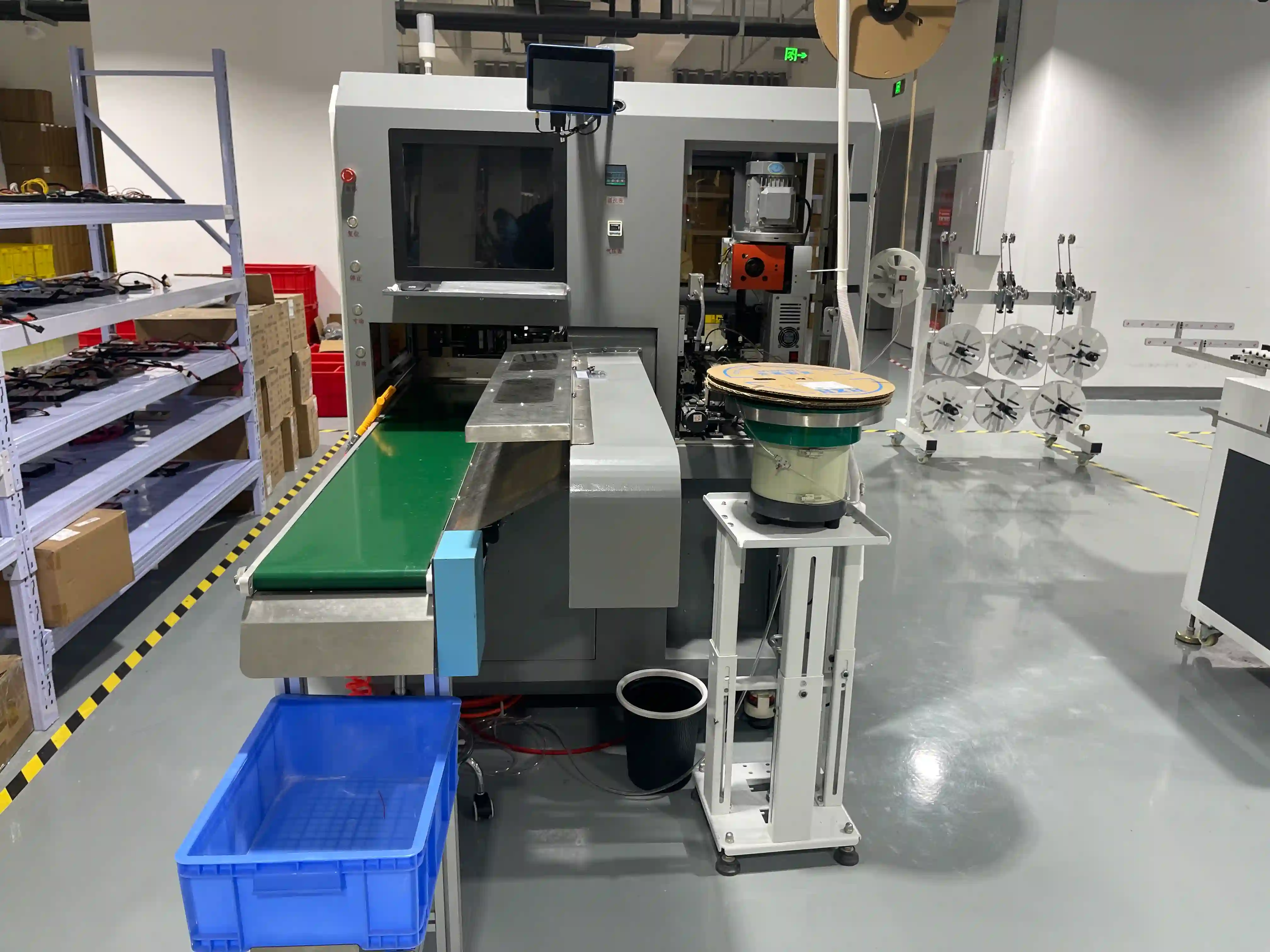

Manufacturing

Build the first article with agreed materials and process notes to evaluate connector fit, handling, assembly stack-up, and manufacturability.

Build stage

Testing

Perform the checks agreed on the drawing and record results against that test plan to guide acceptance or design changes.

Verification stage

Delivery

Ship with the documentation agreed at quotation for review, then obtain approval before revised samples, pilot lots or production release.

Delivery stage

Have an Urgent Requirement?

Urgent requests are reviewed against material availability and agreed scope. Share the required decision date, drawing revision and test needs so feasibility can be confirmed at quotation.

Discuss Your Required Date

What We Prototype

Cable Assembly Types

  • ✓Power cables and distribution
  • ✓Data and communication cables
  • ✓Signal and control cables
  • ✓Coaxial and RF assemblies
  • ✓Multi-conductor cables
  • ✓Shielded and unshielded cables
  • ✓Flat flex cables (FFC)
  • ✓Custom hybrid cables

Wire Harness Types

  • ✓Automotive wire harnesses
  • ✓Medical device harnesses
  • ✓Industrial control harnesses
  • ✓Robotic system harnesses
  • ✓Panel and rack harnesses
  • ✓Machine tool harnesses
  • ✓Custom wiring solutions

Prototype Applications

New Product Introduction

Engineering teams use prototype cable assemblies to confirm connector selection, cable flexibility, shielding approach, routing, and test access before freezing the released design.

Field Trial and Pilot Equipment

Low-volume prototype lots support beta installs, on-site equipment validation, pilot machines, and customer demonstrations where the cable must work reliably before full commercial release.

Legacy Cable Replacement

When the original supplier is unavailable or the documentation is incomplete, a physical sample or installed cable can be converted into a controlled prototype for qualification and later repeat ordering.

Design Change Validation

Prototype builds help confirm revised connectors, alternative cable jackets, updated branch geometry, or new label requirements before a running change is released to production.

Regulated and High-Reliability Equipment

Medical, transport, industrial control, and harsh-environment programs often need prototype evidence that ties design assumptions to real inspection and electrical verification before approval.

Supplier Transfer Projects

A first article can validate whether an assembly built by a new supplier still matches the approved intent, by comparing pinout, shield termination and connector orientation against controlled reference documents.

Representative Project TypeIllustrative workflow · not a customer result

Planning a sample for a new product

Define the decision. An illustrative brief might ask whether a cable fits an enclosure and mates with the intended equipment. Record the drawing or sample reference and the acceptance questions before requesting a build.

Resolve the inputs. Check connector and cable availability, mating orientation, pinout and measuring conditions. Agree any substitutions and the records needed with the sample.

Review the evidence. Compare the delivered sample and agreed records against the acceptance list. Record deviations and any drawing changes before requesting another sample.

Authorise the next stage. Identify the approved reference sample, drawing revision, as-built BOM and test plan. Pilot or production release needs explicit approval of that package and closure of open deviations.

Frequently Asked Questions

What is your typical prototype lead time?▼

Sample and production lead times depend on complexity and are confirmed in your quote. Procurement can take longer than assembly. Urgent requests are reviewed against material availability and agreed scope; the assumed schedule on this page is an illustration, not a delivery commitment.

What is the minimum order quantity for prototypes?▼

There is no MOQ. Specify how many samples are needed for fit checks, electrical evaluation, destructive tests and retained references so the quoted quantity matches the approval plan.

Can I make changes after seeing the prototype?▼

Changes can be reviewed for a revised sample. Revisions are quoted per change or confirmed at quotation. Record each change against a new drawing revision, identify affected checks and obtain approval before the next build; timing depends on materials and the revised test scope.

Do you provide testing with prototypes?▼

Prototypes are tested to the test plan agreed on the drawing; continuity and pinout checks are the baseline where the drawing calls for them. Agree coverage, acceptance limits and any visual, label, dimensional, insulation resistance, hi-pot or fit checks at quotation. Request additional validation explicitly so its feasibility and scope can be reviewed.

What documentation is provided with prototypes?▼

Delivery includes the documentation package agreed at quotation, typically one or more of: electrical schematics, assembly drawings, an as-built Bill of Materials (BOM), test records and inspection reports. Agree the required items and their revisions before the build; the package checklist below is not a promise that every item is always supplied.

Can you prototype with components I supply?▼

Customer-supplied components can be reviewed for the prototype build. Confirm part numbers, condition, quantities, handling and the delivery destination at quotation before shipping. As a contract assembler, we manufacture wire harnesses through our wholly owned subsidiary Hebei Cloom.

What happens after prototype approval?▼

Record approval against the drawing revision and as-built BOM, and freeze pinout, labels, lengths, shielding method and test sequence. Agree sample retention and close deviations before authorising pilot or production release. Sample approval alone does not authorise production; quantities, lead time and release scope are confirmed at quotation.

What is the difference between a prototype cable assembly and a production cable assembly?▼

A prototype cable assembly is built to validate the design, installation, and test assumptions before full release. The goal is to prove fit, pinout, materials, and handling with real hardware. A production cable assembly uses the approved sample plus locked work instructions, inspection criteria, and purchasing control for repeat supply. The approved sample supports the released part definition only when its drawing revision, as-built BOM and test plan are identified.

Can you build prototype cable assemblies from a sample or incomplete drawing?▼

A sample, mating-device photos or an incomplete wiring table can be inputs to review. Missing connector details, cable construction, labels and test scope need to be resolved in a controlled build definition before the sample can support release approval.

How many prototype units should we order?▼

Base the requested quantity on the approval questions, the teams needing samples, any destructive evaluation and retained reference needs. Include those uses in your request.

Do prototype cable assemblies have to use final production materials?▼

Not always, but material substitutions should be explicit. Some early prototypes only need to prove geometry and connectivity, while others must represent the final cable jacket, shield construction, or connector sealing because those choices affect real-world performance. The important point is that the sample intent is documented so later teams do not assume the prototype already equals production readiness.

What should I check when the prototype arrives?▼

Start with sample identification and drawing revision, then connector part numbers and orientation, pinout against the wiring table, datum-to-datum length in the stated condition, labels, mating with the real counterpart, workmanship and the agreed records. Use the written acceptance list to accept, conditionally accept for a restricted purpose, or reject; appearance alone is not approval.

How do I document a change between sample rounds?▼

Keep one change log per drawing. Record a unique change ID, before and after revisions, the finding from the identified sample, affected features, required re-tests and approval with date. Attach marked-up before and after drawing views, never re-use a revision letter, and mark superseded samples so they cannot enter pilot lots.

Why can prototype lead time be dominated by parts?▼

Assembly cannot use an unavailable connector or cable. Confirm exact part numbers and availability before treating build time as a delivery estimate. Ordering during drawing review can overlap those stages but risks rework if the design changes. The worked example uses assumed working days only; procurement and the test scope determine the schedule.

What is the difference between a prototype and a first article?▼

A prototype tests design assumptions and may lead to changes. A first article checks a build against a nominated drawing revision, as-built BOM, approved reference and test plan for a defined release decision. A prototype can serve that role only if it represents the intended released configuration and the required evidence is accepted. Pilot and production release still need explicit authorisation.

Can the approved prototype be the reference for a new supplier?▼

Yes, if it represents the released configuration and is identified alongside the approved drawing revision, as-built BOM and test plan. Compare the new supplier first article against the complete reference package. Resolve orientation, pinout and shield-termination ambiguities before approval, and document any substituted parts and required validation.

Ready to start your prototype?

Get Prototype Quote

Start Your Prototype Today

Share your drawing or sample, required quantity and acceptance list. Revisions are quoted per change or confirmed at quotation.
