IDC Ribbon Cable Assembly for Australian OEMs
Custom flat ribbon cable harnesses with IDC connectors, keyed orientation, strain relief, pin-1 control, and documented electrical testing for equipment builders, test fixtures, and internal control wiring.
TL;DR
IDC ribbon cables suit parallel signal runs where flat routing and quick termination matter more than sealed outdoor protection.
Typical builds use 10 to 64 conductors, 1.27mm or 2.54mm pitch, keyed headers, strain relief, and pin-1 marking.
Every release can include continuity, pin mapping, orientation checks, visual inspection, and lot traceability.
Best-fit orders range from one prototype to scheduled OEM supply after first-article approval.
When IDC ribbon cable is the right assembly format
Ribbon cable is a flat multi-conductor cable that keeps wires in a fixed parallel order, making it useful when a buyer needs predictable pin mapping and tidy internal routing. IDC ribbon cable assembly is a strong fit for low-voltage signal connections, test equipment, control panels, instrumentation, embedded modules, and serviceable internal links.
Strain relief is a mechanical protection feature that reduces conductor stress at the connector exit. On ribbon assemblies, strain relief, keying, and pin-1 marking are not cosmetic details; they prevent reversed installation and reduce handling damage during repeated equipment servicing.
Buyers often compare ribbon cable with FFC cable assemblies and round harnesses. IDC ribbon usually wins when the assembly needs a multi-way IDC socket, quick fixture installation, or a flat cable that technicians can identify and replace without special tools.
What we control on custom ribbon cable builds
The main release risks are reversed polarity, weak connector seating, poorly supported cable exits, and loose pinout documentation. Our build plan addresses these before repeat production.
Flat Multi-Conductor Cable Builds
Ribbon cable is a flat cable that keeps conductors parallel, colour-coded, and easy to route through equipment panels, test fixtures, and compact internal assemblies.
IDC Connector Termination
An IDC connector is a termination system that pierces conductor insulation during pressing, reducing hand stripping and improving repeatability on parallel conductor sets.
Keying, Polarisation, and Pin-1 Control
Connector orientation, ejector latch fit, red-edge pin-1 marking, notch direction, and strain relief are checked before production release.
Prototype to Repeat Supply
MOQ 1 prototypes support early fit checks, while approved assemblies can move into batch builds with controlled BOMs and inspection records.
Standards-Aware Workmanship
Workmanship reviews can align with IPC/WHMA-A-620 acceptance logic, ISO 9001 release records, and UL 758 recognised wire selection when required by the RFQ.
Labelled and Packed for Installation
Assemblies can ship with part labels, pinout notes, bag-level traceability, bend protection, and packaging that keeps flat cables from creasing in transit.
Technical scope for IDC ribbon cable RFQs
| Cable format | Flat ribbon cable, split ribbon, twisted-pair ribbon sections, jacketed ribbon, or hybrid ribbon-to-discrete leads |
| Common conductor counts | 10, 14, 16, 20, 26, 34, 40, 50, and 64 conductors; custom counts reviewed from drawing or sample |
| Common pitch | 1.27mm and 2.54mm ribbon formats, matched to IDC socket, plug, transition, or card-edge style requirements |
| Connector options | IDC sockets, D-sub IDC, box headers, keyed/ejector-latch housings, transition connectors, and mixed discrete exits |
| Quality checks | 100% continuity, pin mapping, polarity, connector orientation, visual workmanship, length, label, and packaging inspection |
| Typical supply path | MOQ 1 prototype, first-article approval, pilot lot, then repeat batch production under controlled revision |
Ribbon cable versus FFC and round harness formats
The right format depends on connector type, handling, protection, and service access. A flat profile alone is not enough reason to choose ribbon cable.
| Format | Best fit | Trade-off |
|---|---|---|
| IDC ribbon cable assembly | Parallel low-voltage signal runs, test fixtures, internal equipment links, and harnesses that need quick multi-way termination | Poor fit for high-flex motion, wet locations, or heavy abrasion unless the assembly is protected inside equipment |
| FFC cable assembly | Very thin straight internal links where ZIF/LIF connectors and low stack height are the main design drivers | Less convenient when the buyer needs IDC sockets, branch splitting, panel transitions, or manual serviceability |
| Round cable harness | External routing, rugged handling, sealed connectors, service loops, and higher mechanical protection | Bulkier than ribbon cable and slower to terminate when many parallel conductors land in one connector |

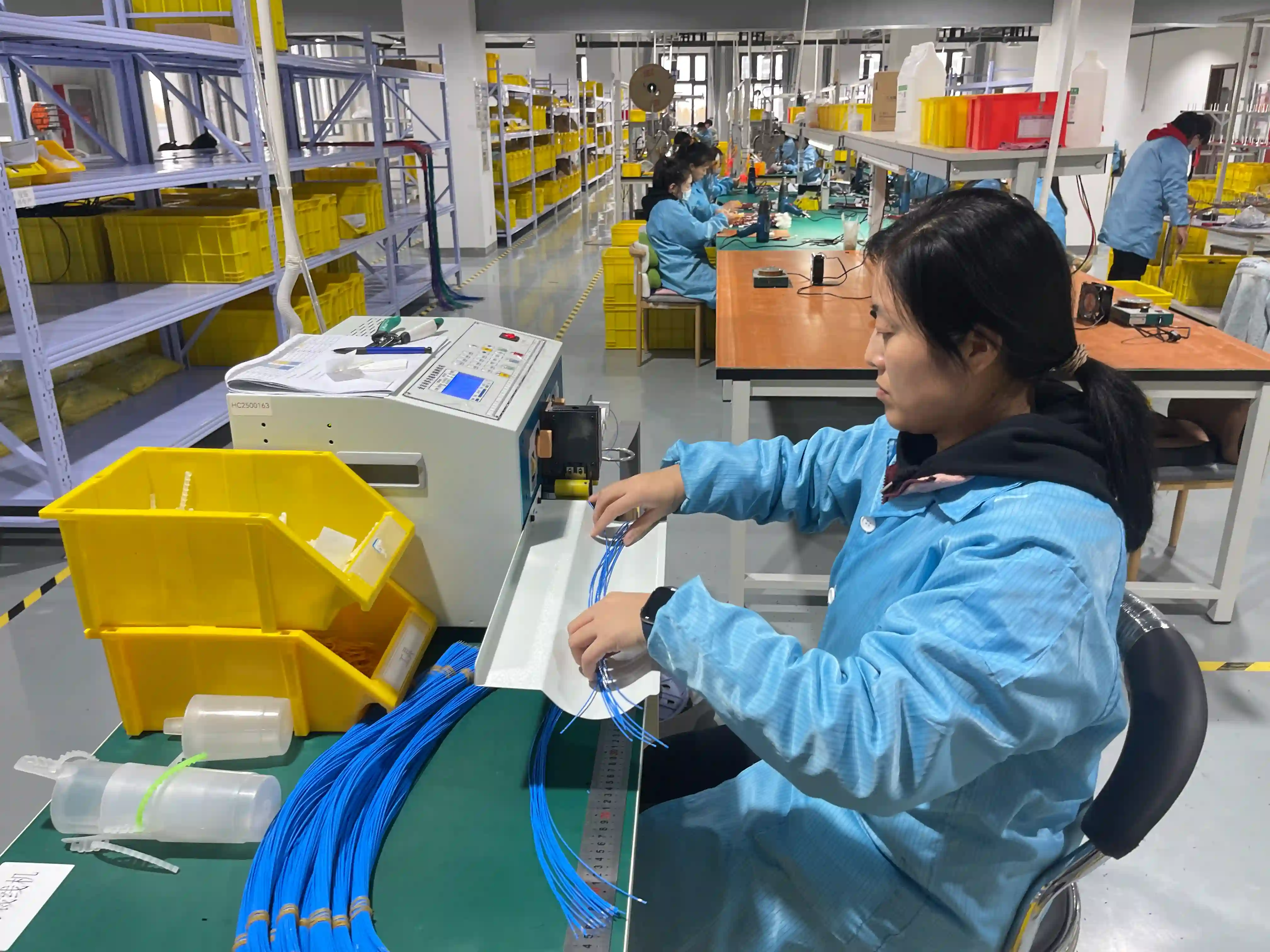

Manufacturing and release process
Review Pinout and Routing
We confirm conductor count, pin-1 convention, connector keying, cable exit direction, bend path, and any split-out sections before quoting.
Build First Articles
Prototype ribbon assemblies validate connector press height, latch engagement, polarity, cable length, strain relief, and fixture fit.
Test Every Assembly
Continuity and pin mapping verify that the IDC termination matches the released drawing before parts are labelled and packed.
Control Repeat Orders
Approved builds move into scheduled production with BOM control, revision tracking, and traceable release records for purchasing teams.
Capability scope
This service is optimized for flat multi-conductor IDC cable assemblies used inside protected equipment, fixtures, instruments, and control hardware. It is not the best default for exposed wet service, heavy abrasion, or continuous flexing.
For those harsher applications, our engineering team will usually review a waterproof wire harness, overmolded cable assembly, or jacketed cable design instead of forcing ribbon cable into the wrong environment.
Buyer scenario
A typical RFQ starts with an older 34-way ribbon sample, a target length, and a note that pin 1 must exit toward the panel hinge. We confirm orientation, build one first article, test every conductor, and lock the approved sample before the batch run.
Standards and reference points for buyer review
Ribbon cable drawings should define acceptance criteria, not only length and conductor count. The references below are useful when buyers need shared language for workmanship, cable construction, and connector style.
IDC Ribbon Cable Assembly FAQ
Common RFQ questions from engineers and buyers replacing or releasing flat ribbon cable harnesses.
What is an IDC ribbon cable assembly?
An IDC ribbon cable assembly is a flat multi-conductor cable terminated with insulation displacement connectors. The connector blades press through the insulation and contact each conductor, so 10 to 64 wires can be terminated in one controlled operation. Buyers use this format for internal equipment links, test fixtures, control modules, and serviceable panel connections where pin order and connector orientation must remain consistent.
How is ribbon cable different from FFC cable?
Ribbon cable usually uses individually insulated parallel conductors at pitches such as 1.27mm or 2.54mm, then terminates to IDC sockets or related connectors. FFC cable is a thinner laminated flat cable that typically mates with ZIF or LIF connectors. Ribbon cable is better for serviceable IDC harnesses and fixture wiring. FFC cable is better when low stack height and compact internal routing matter most.
What information should we include in a ribbon cable RFQ?
A useful RFQ includes conductor count, pitch, cable length, connector part numbers, pin-1 location, keying direction, strain relief requirement, label text, annual volume, and the equipment environment. A photo or sample helps when replacing an older assembly. For new builds, a simple pinout table and mating connector details are usually enough to start first-article planning.
Can ribbon cables be used in harsh environments?
Ribbon cables can work inside protected equipment, cabinets, instruments, and test fixtures, but exposed mining, marine, automotive exterior, or washdown locations usually need a different cable format. For harsh service, we normally review a jacketed cable, sealed connector system, overmolded exit, or protective loom. The decision depends on vibration, moisture, abrasion, bend cycles, and service access.
What testing is performed before shipment?
Ribbon cable release checks can include 100% continuity, pin mapping, polarity, connector orientation, latch fit, conductor alignment, visual workmanship, length, label, and packaging inspection. For controlled OEM supply, inspection records can reference IPC/WHMA-A-620 workmanship criteria and ISO 9001 traceability expectations. Critical fixtures can also receive customer-specific functional checks before release.
