Custom Cable Harness Manufacturer for Australia
Engineered cable harness solutions for Australian OEMs across mining, defence, marine, automotive, and industrial sectors. From single prototypes to 100K+ production runs with no minimum order quantity.

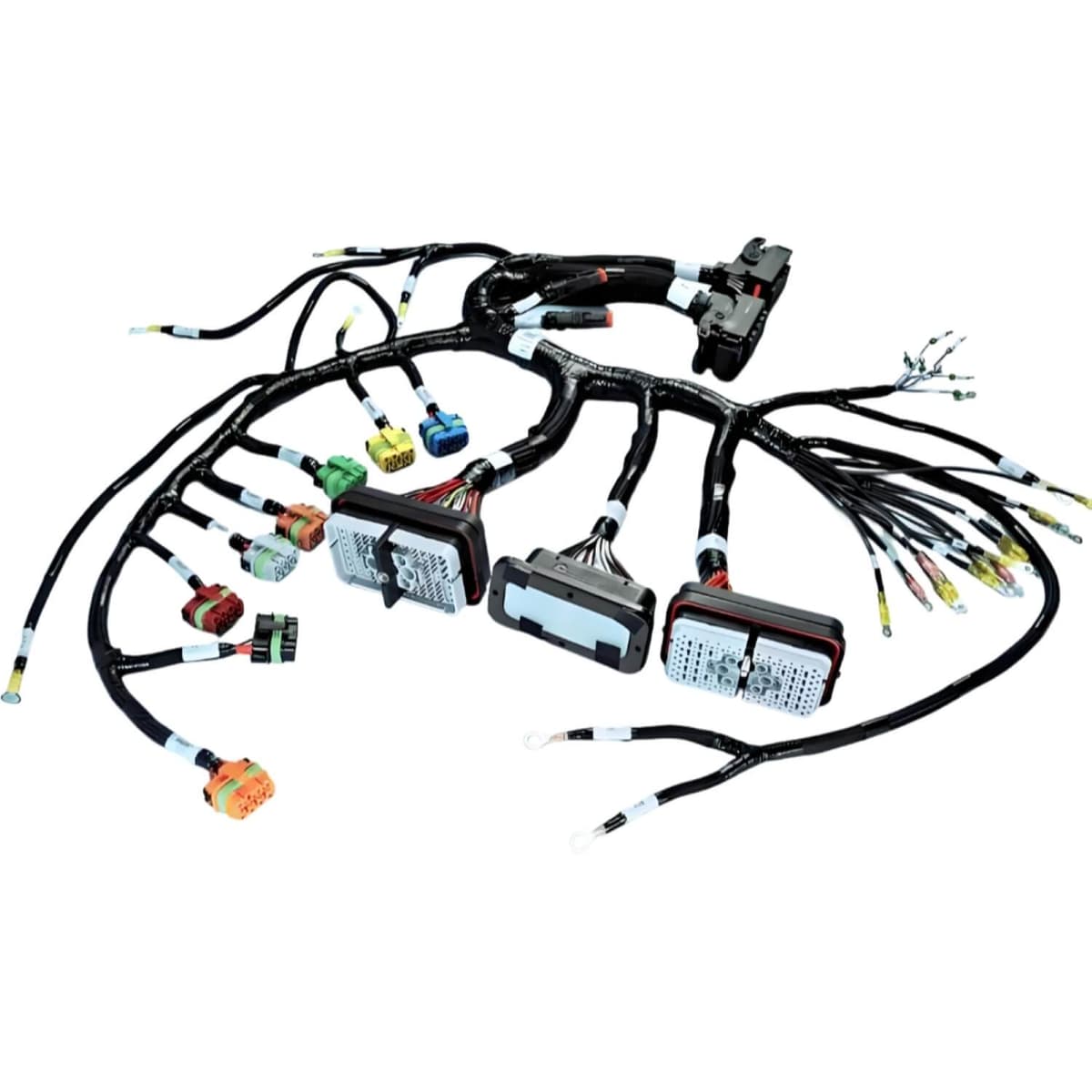

What is a Cable Harness?
A cable harness -- sometimes called a cable loom or cable assembly harness -- is an organised bundle of cables, wires, connectors, terminals, and protective components assembled together to transmit electrical power and signals within a piece of equipment. Unlike individual point-to-point wiring, a cable harness consolidates multiple circuits into a single, pre-engineered unit that can be installed quickly and reliably.
For Australian OEMs, cable harnesses are the nervous system of modern equipment. They route power and data between controllers, sensors, actuators, displays, and communication modules -- all within a protected, tested assembly that is purpose-built for your specific application. A well-designed cable harness reduces installation time by up to 60%, eliminates wiring errors, and dramatically improves field reliability compared to loose wiring.
Whether you need a simple 5-conductor power distribution harness for a control panel or a complex 200+ circuit harness for a mining haul truck, our engineering team designs and manufactures cable harnesses that meet the exact electrical, mechanical, and environmental requirements of Australian industry.
Why Australian Engineers Choose Our Cable Harness Manufacturing
Purpose-built cable harness solutions that solve the real challenges facing Australian OEMs
Free Engineering & DFM Support
50+ engineers provide complimentary design for manufacturability analysis, 2D/3D CAD development, connector selection guidance, and bill of materials optimisation. No charge on projects that proceed to production.
Automated Crimping with Force Monitoring
Fully automatic and semi-automatic crimping machines with real-time crimp force monitoring on every cycle. Handles terminal sizes from 0.08mm² to 25mm² with process capability (Cpk) exceeding 1.67.
100% Electrical Testing
Every cable harness undergoes automated continuity, insulation resistance, and hi-pot testing. Test results are recorded and traceable to individual serial numbers for full production lot traceability.
No Minimum Order Quantity
From 1 prototype to 100,000+ production units per year. Our manufacturing is structured for both low-volume, high-mix production typical of Australian defence and mining, and high-volume consumer applications.
Melbourne Office, Global Manufacturing
Local Melbourne engineering support with certified manufacturing capacity. Australian project management ensures quality, communication, and on-time delivery to any Australian address with 99.2% on-time record.
Dual ISO/IATF Certification
ISO 9001:2015 quality management and IATF 16949:2016 automotive quality certification. IPC/WHMA-A-620 Class 2 and Class 3 workmanship capability for the most demanding cable harness applications.
Cable Harness Types We Manufacture
From simple power distribution harnesses to complex multi-branch cable looms with hundreds of circuits
Power Distribution Cable Harnesses
Heavy-gauge cable harnesses for power distribution in industrial equipment, switchgear, UPS systems, and battery packs. Rated up to 600V AC/DC with properly sized conductors from AWG 4 to AWG 16.
Signal & Data Cable Harnesses
Low-voltage cable harnesses for sensor networks, communications, and data acquisition systems. Shielded and twisted-pair options for EMI-sensitive applications in mining, defence, and medical equipment.
Hybrid Power + Signal Harnesses
Combined power and signal cable harnesses that consolidate multiple cable runs into a single assembly. Reduces installation time, weight, and potential failure points in complex equipment.
Automotive & Vehicle Cable Harnesses
IATF 16949 certified cable harnesses for passenger vehicles, commercial trucks, buses, agricultural equipment, and specialty vehicles. Designed for engine bay, cabin, and chassis applications.
Ruggedised Cable Harnesses
Heavy-duty cable harnesses engineered for extreme Australian conditions. UV-resistant jackets, IP67/IP68 sealed connectors, and chemical-resistant materials for mining, marine, and outdoor installations.
Control Panel Cable Harnesses
Pre-terminated cable harnesses for electrical control panels, PLC cabinets, and switchboard assemblies. Arrives labelled, tested, and ready to install -- reducing panel build time by up to 60%.
Cable Harness Technical Specifications
Electrical Specifications
Mechanical & Environmental
Connector Families We Work With
Our Cable Harness Manufacturing Process
A proven 6-step process from initial consultation to delivered, tested cable harnesses ready for installation
Design & DFM
Review specifications, optimise design for manufacturability
Materials Sourcing
Procure cables, connectors, and components from approved vendors
Cutting & Stripping
Precision automated wire cutting and stripping to specification
Crimping & Assembly
Automated crimping with force monitoring, harness routing on boards
Testing & QC
Continuity, insulation resistance, hi-pot, and visual inspection
Packaging & Ship
Custom packaging, labelling, and direct shipping to Australia
Cable Harness vs Wire Harness vs Cable Assembly
Understanding the differences helps you specify the right solution for your application
| Characteristic | Cable Harness | Wire Harness | Cable Assembly |
|---|---|---|---|
| Conductor Type | Multi-conductor cables + wires | Individual wires | Pre-jacketed cable |
| Typical Circuits | 10 - 500+ | 2 - 200 | 1 - 50 |
| Complexity | High (multi-branch) | Medium | Low to medium |
| Current Capacity | Medium to high | Low to medium | Varies by cable |
| Routing | Routing boards / 3D jigs | Routing boards | Point-to-point |
| Shielding | Individual + overall | Overall only | Built into cable |
| Best For | Complex equipment | Appliances, panels | Sensor, data, power leads |
Not sure which type suits your application? Our engineers can advise.
Read Our Detailed Comparison GuideCable Harness Applications by Industry
Custom cable harnesses engineered for the specific demands of each Australian industry
Mining & Resources
Ruggedised cable harnesses for haul trucks, draglines, conveyor systems, and underground mining equipment. IP67/IP68 sealed, vibration-rated, and resistant to hydraulic fluids, dust, and UV exposure.
View Industry SolutionsDefence & Aerospace
MIL-spec cable harnesses for military vehicles, communications platforms, radar systems, and avionics. Manufactured to IPC/WHMA-A-620 Class 3 with full traceability and ITAR-compliant documentation.
View Industry SolutionsMarine & Offshore
Saltwater-resistant cable harnesses for commercial vessels, recreational boats, offshore platforms, and subsea equipment. UV-stabilised jackets and tinned copper conductors for maximum corrosion resistance.
View Industry SolutionsAutomotive & EV
IATF 16949 certified cable harnesses for powertrain, battery management, ADAS, infotainment, and body electrical systems. Designed for engine bay temperatures, continuous vibration, and automotive lifecycle testing.
View Industry SolutionsMedical Devices
Biocompatible cable harnesses for diagnostic imaging, surgical robots, patient monitors, and laboratory equipment. Manufactured in controlled environments with full lot traceability and ISO 13485 alignment.
View Industry SolutionsIndustrial Automation
Cable harnesses for PLC cabinets, robotic work cells, CNC machines, and factory automation systems. High-flex rated for continuous motion applications with EMI shielding for noise-sensitive environments.
View Industry SolutionsQuality Assurance & Certifications
Every cable harness is manufactured, tested, and documented to international quality standards
ISO 9001:2015
Quality Management System
IATF 16949:2016
Automotive Quality Management
Cable Harness Testing & Validation
Continuity Testing
100% automated point-to-point continuity verification on every harness circuit
Insulation Resistance
Megohm testing to validate conductor-to-conductor and conductor-to-shield isolation
Hi-Pot / Dielectric
High-voltage withstand testing up to 3kV to ensure insulation integrity under stress
Crimp Cross-Section
Microscopic crimp cross-section analysis to verify terminal compression and wire fill
Our Cable Harness Manufacturing Facility
Cable Harness Assembly Line
Dedicated harness assembly stations with routing boards, work instructions, and ergonomic tooling.
Automated Terminal Crimping
Fully automatic crimping machines with real-time force monitoring ensure consistent terminal quality.
Electrical Testing Equipment
Automated harness testers perform continuity, insulation resistance, and hi-pot on every unit.
Precision Wire Cutting & Stripping
Automated cutting and stripping machines handle wire gauges from AWG 30 to AWG 4 with tight tolerances.
Vision Inspection System
Automated optical inspection validates crimp geometry, label placement, and connector seating.
Prototype Development
Rapid prototyping delivers first article cable harness samples in as little as 2 weeks.
Frequently Asked Questions About Cable Harnesses
Have a technical question about cable harness manufacturing?
Speak with Our Cable Harness EngineerRelated Resources
Related Articles
Cable Assembly vs Wire Harness: Key Differences
Understand when to specify a cable harness, wire harness, or cable assembly.
Cable Assembly Connector Selection Guide
How to choose the right connector family for your cable harness application.
Wire Harness Testing Guide
Complete guide to electrical and mechanical testing methods for harnesses.
Related Capabilities
Ready to Start Your Cable Harness Project?
Send us your specifications, schematics, or reference samples. Our engineering team will provide a detailed quote with DFM recommendations within 24 hours.
Free engineering support. No minimum order quantity. 2-3 week prototyping.
