A mining truck harness in the Pilbara failed after eight months. The root cause was PVC tape that softened in 55°C ambient heat, exposing wires to abrasion against the chassis rail. A nearly identical harness on the same truck model survived three years — wrapped with Class D cloth tape rated to 150°C. The tape cost $4 more per roll. The field replacement cost $2,800 in labour alone.
Wire harness tape is the cheapest component in a cable assembly — and the one most likely to cause an expensive field failure when specified incorrectly. This guide covers the four main tape families, their performance characteristics, and how to match tape type to harness zone for automotive, mining, industrial, and marine applications across Australia.
PVC tape maximum continuous rating
Cloth PET tape T4 class rating
Class F abrasion strokes (ISO 6722)
Standard spiral wrap overlap
Why Tape Selection Matters
Harness tape serves four distinct functions: bundling loose wires into a manageable cable form, protecting the bundle from mechanical abrasion, insulating against electrical contact, and reducing noise (NVH) from wire-on-panel vibration. No single tape type does all four well. Selecting the wrong tape — or using one tape type across every harness zone — creates predictable failure modes.
Wrapping tapes reduce cable protection volume by up to 50% compared to corrugated tubing, according to Coroplast's automotive tape engineering data. They also weigh less. In applications where every gram matters — aerospace panels, EV battery harnesses, robotic arm cables — tape wrapping beats rigid conduit on both weight and flexibility.
When Tape Wrapping Excels
- •Tight routing through bulkheads and grommets
- •Flexible harness zones that need to bend during installation
- •Weight-sensitive applications (aerospace, EV, robotics)
- •Interior NVH zones where conduit would amplify rattle
When Conduit Beats Tape
- •High-abrasion zones with constant rubbing (chassis rails, suspension)
- •Rodent-prone areas (underground, agricultural equipment)
- •Wires routed near exhaust manifolds above 200°C
- •Areas requiring frequent harness access for maintenance
"I see harnesses come back from the field with PVC tape that turned into a sticky mess after one summer in an engine bay. PVC is a bundling tape, not a protection tape. For anything above 80°C ambient, the conversation starts at woven cloth. For Australian mining and outdoor applications, I spec Class D cloth tape as the minimum — the price difference is under $5 per harness, but the warranty claim costs $500 to $3,000 per incident."
Free DFM Review on Every Wire Harness RFQ
Our engineers verify tape specifications match your operating environment. Quoted within 48 hours.
PVC Vinyl Tape: The Bundling Workhorse
PVC (polyvinyl chloride) tape is the most widely used wire harness tape worldwide, accounting for roughly 60% of tape consumption in automotive harness plants. Its popularity comes from cost — PVC harness tape runs $2 to $5 per 25-metre roll — and its stretch-conformability. When you pull PVC tape slightly during wrapping, it conforms tightly around irregular bundle shapes and maintains grip through its own tension.
PVC tape works best for indoor bundling, wire identification through colour coding, and light-duty protection in climate-controlled environments. Standard PVC tape is rated to 105°C continuous and carries abrasion Class A or B — adequate for interior body harnesses routed through conduit or behind trim panels where secondary protection exists. Tesa 51128 and Coroplast 8110 are common OEM specifications for this application.
PVC Limitation: Adhesive Migration
Above 80°C, PVC tape adhesive begins to soften and migrate. After prolonged heat exposure, the adhesive oozes from the tape edges, creating a sticky film that attracts dust and abrasive particles. This "adhesive creep" is the number-one complaint in automotive forum discussions about PVC harness tape. For any underhood or outdoor application, use cloth or fleece tape instead.
PVC Tape Specifications
Woven Cloth (PET) Tape: The Engine Bay Standard
Woven cloth tape uses a polyester (PET) fabric backing coated with a high-temperature acrylic adhesive. It is the standard protection tape for engine compartments, underbody routing, and any harness zone where temperature exceeds 105°C or abrasion resistance above Class B is required. BMW, Mercedes-Benz, and VW Group specify cloth PET tape for all engine bay harness branches.
Cloth tape comes in temperature classes defined by the automotive industry: T2 (105°C), T3 (125°C), and T4 (150°C). For Australian conditions — where engine bay temperatures routinely reach 120°C and ambient temperatures in Northern Territory and Western Australia mining operations exceed 50°C — T3 rated tape is the practical minimum. T4 tape is specified for harness routes within 100 mm of exhaust components.
The key advantage of cloth tape over PVC is abrasion resistance. Woven PET fabric withstands thousands of scrape cycles without exposing the underlying wire insulation. Tesa 51036 (T4, Class D) is the most widely specified cloth harness tape globally. Coroplast 837X offers equivalent performance and is the primary specification for VW Group and BMW. Both are available in Australia through RS Components, Element14, and specialist harness suppliers.
Cloth PET Tape Specifications
Non-Woven Fleece (Felt) Tape: The NVH Solution
Non-woven polyester fleece tape is the only harness tape type designed primarily for noise reduction. The thick, fuzzy fleece backing absorbs impact energy when a wrapped harness vibrates against plastic panels, sheet metal, or other hard surfaces. Without fleece tape, interior harness branches behind dashboards, inside door panels, and along headliners produce audible ticking and rattling — the kind of NVH defect that generates warranty complaints despite having zero electrical impact.
Fleece tape comes in two primary thicknesses: standard (0.3 mm, e.g., Tesa 51608) for most interior applications, and heavy-duty (0.8 mm, e.g., Tesa 51616) for floor pan routes and areas with higher vibration amplitude. Both use an acrylic adhesive rated to 105°C continuous. The trade-off with fleece tape is bulk — it adds 2 to 4 mm to the harness diameter, which matters in tight routing channels.
NVH Performance Tip
Fleece tape eliminates wire-on-panel rattle, but it does not block airborne noise transmission. For harnesses running through firewall penetrations where engine noise could transmit into the cabin, combine fleece-wrapped harness with a foam grommet seal at the bulkhead pass-through. This addresses both structural and airborne noise paths — a detail that proper harness routing design should specify from the start.
Fleece Tape Specifications
Aluminium Foil Tape: EMI Shielding on a Roll
Aluminium foil tape provides electromagnetic interference (EMI) shielding by wrapping signal-carrying conductors in a conductive barrier. The most common construction is an AL/PET composite — aluminium foil laminated to a polyester carrier film — which combines the shielding effectiveness of aluminium with the tear resistance of PET. This composite has become the mainstream shielding solution for sensor cables, CAN bus lines, and control cables in both automotive and industrial harnesses.
Foil tape is not a replacement for braided shield. It provides 40 to 60 dB of shielding effectiveness at frequencies below 1 GHz — adequate for CAN bus, LIN bus, and low-frequency sensor signals. For RF applications above 1 GHz or environments requiring 80+ dB attenuation, braided copper shield is the better choice. The advantage of foil tape is speed of application — a technician can spiral-wrap a harness branch in seconds, while braided shield requires pull-through or pre-formed tubes.
Foil Tape Specifications
"The biggest tape mistake I see in RFQ drawings is a single tape callout for the entire harness. A dashboard harness alone crosses three different zones — engine bay pass-through (cloth T4), firewall transition (fleece + grommet), and interior routing (fleece or PVC). Each zone has different thermal, abrasion, and NVH requirements. One tape specification means two of those three zones are wrong."
Wire Harness Tape Comparison
| Property | PVC Vinyl | Cloth PET | Fleece (Felt) | Foil (AL/PET) |
|---|---|---|---|---|
| Max Temperature | 105°C | 150°C (T4) | 105°C | 150°C |
| Abrasion Class | A–B | C–F | A–B | N/A (fragile) |
| NVH Damping | None | Minimal | Excellent | None |
| EMI Shielding | None | None | None | 40–60 dB |
| Conformability | Excellent (stretches) | Good | Good | Fair (crinkles) |
| Cost (25 m roll) | $2–5 AUD | $8–15 AUD | $6–12 AUD | $10–20 AUD |
| Primary Use | Indoor bundling | Engine bay, underbody | Interior NVH zones | Signal cable shielding |
| OEM Example | Tesa 51128 | Tesa 51036 | Tesa 51608 | 3M 1170 / Tesa 51925 |
Abrasion Classes Explained (ISO 6722)
The ISO 6722 scrape abrasion test measures how many back-and-forth strokes a tape surface survives before the underlying conductor is exposed. A weighted, blade-shaped tool strokes across the tape at controlled pressure and temperature. The stroke count at failure determines the class. This rating is the single most important specification for any harness zone where wires contact metal edges, cable ties, or other harnesses.
| Class | Strokes to Failure | Protection Level | Typical Application |
|---|---|---|---|
| A | <100 | None | Colour identification only |
| B | 100–500 | Light | Interior, protected cable trays |
| C | 500–1,500 | Moderate | Vehicle body, general industrial |
| D | 1,500–5,000 | High | Engine bay, mining, underbody |
| E | 5,000–15,000 | Very high | Defence, high-vibration zones |
| F | >15,000 | Extreme | Near exhaust, sharp-edge routing |
Wrapping Techniques
Three wrapping methods cover all wire harness taping applications. The method you specify determines both the protection level and the tape consumption rate — a direct impact on production cost and cycle time.
Spiral Wrap (50% Overlap)
The tape spirals along the harness at a 45° angle with each turn overlapping half the previous turn. Creates double-layer coverage across the entire length. This is the default specification for most harness zones.
Use for: Primary protection on all main trunk and branch runs. Required by IPC/WHMA-A-620 Class 2 and Class 3 harnesses.
Spot Wrap (Flag Tape)
Short tape wraps at fixed intervals (every 50 to 100 mm) hold the bundle shape without full coverage. Uses 60 to 70% less tape than spiral wrapping. Provides bundling only — no abrasion or moisture protection.
Use for: Low-stress interior runs, sub-harness branches inside conduit, temporary holding during assembly before final wrapping.
Full Overlap (Close Wrap)
Each turn sits directly against the previous turn with no overlap and no gap. Single-layer coverage. Consumes less tape than spiral wrap but provides no redundancy — a single nick exposes wire.
Use for: Harness branches where weight and diameter are critical (aerospace, robotics). Combine with secondary protection like braided sleeving or heat shrink at vulnerable points.
Application by Harness Zone
A single vehicle or machine harness crosses multiple thermal and mechanical zones. Each zone demands a different tape type. The table below maps common harness zones to their recommended tape specifications, drawn from OEM standards and our production experience across Australian automotive, mining, and industrial customers.
| Harness Zone | Tape Type | Min Abrasion | Key Requirement |
|---|---|---|---|
| Engine bay (near exhaust) | Cloth PET T4 | D | 150°C continuous, oil resistance |
| Engine bay (general) | Cloth PET T3 | C | 125°C continuous, vibration |
| Dashboard interior | Fleece 0.3 mm | A | NVH rattle elimination |
| Door panel | Fleece 0.3 mm | A | NVH, moisture resistance |
| Floor pan / underbody | Cloth PET T3 or Fleece 0.8 mm | C | Abrasion + NVH combined |
| CAN bus / sensor lines | AL/PET foil | N/A | EMI shielding 40–60 dB |
| Control cabinet interior | PVC vinyl | A | Bundling, colour coding |
| Mining equipment chassis | Cloth PET T4 | D | Dust, vibration, high ambient temp |
"For Australian mining harnesses, we default to Class D cloth tape on every external branch — full stop. A $4 tape upgrade saves a $2,800 field replacement. The Pilbara, Bowen Basin, and Goldfields punish underspecified harnesses within one dry season. If the drawing says PVC for an outdoor mining application, we flag it in the DFM review before we quote."
Common Tape Selection Mistakes
Mistake 1: Using PVC tape in engine bays
PVC adhesive softens above 80°C and migrates within weeks of exposure. The resulting sticky residue traps grit particles that act as sandpaper against wire insulation. Replace with Class C+ cloth PET tape rated to 125°C minimum.
Mistake 2: Specifying one tape type for the entire harness
A harness that crosses from engine bay to interior requires at minimum two tape types — cloth for the hot zone, fleece for the NVH zone. Single-tape specifications either overspend (cloth everywhere) or underprotect (PVC everywhere).
Mistake 3: Wrapping without overlap
Butt-wrapping (zero overlap) leaves single-layer coverage that exposes wire at the first bend point. Standard spiral wrap with 50% overlap provides double coverage. The extra tape consumed costs pennies; the rework from a gapping failure costs hours.
Mistake 4: Using standard electrical tape as harness tape
Consumer electrical tape (7-mil PVC) lacks the adhesive formulation, temperature stability, and abrasion resistance of purpose-built harness tape. It unravels under vibration and leaves adhesive residue after heat cycling. Specify harness-grade tape by part number — never by generic description.
Mistake 5: Ignoring tape direction at breakout points
At harness branches and breakout points, the spiral wrap must terminate with a flag wrap (2 to 3 complete turns at 90°) to anchor the spiral and prevent unravelling. Skipping the flag wrap at breakouts is a common line-side shortcut that creates a failure point under vibration.

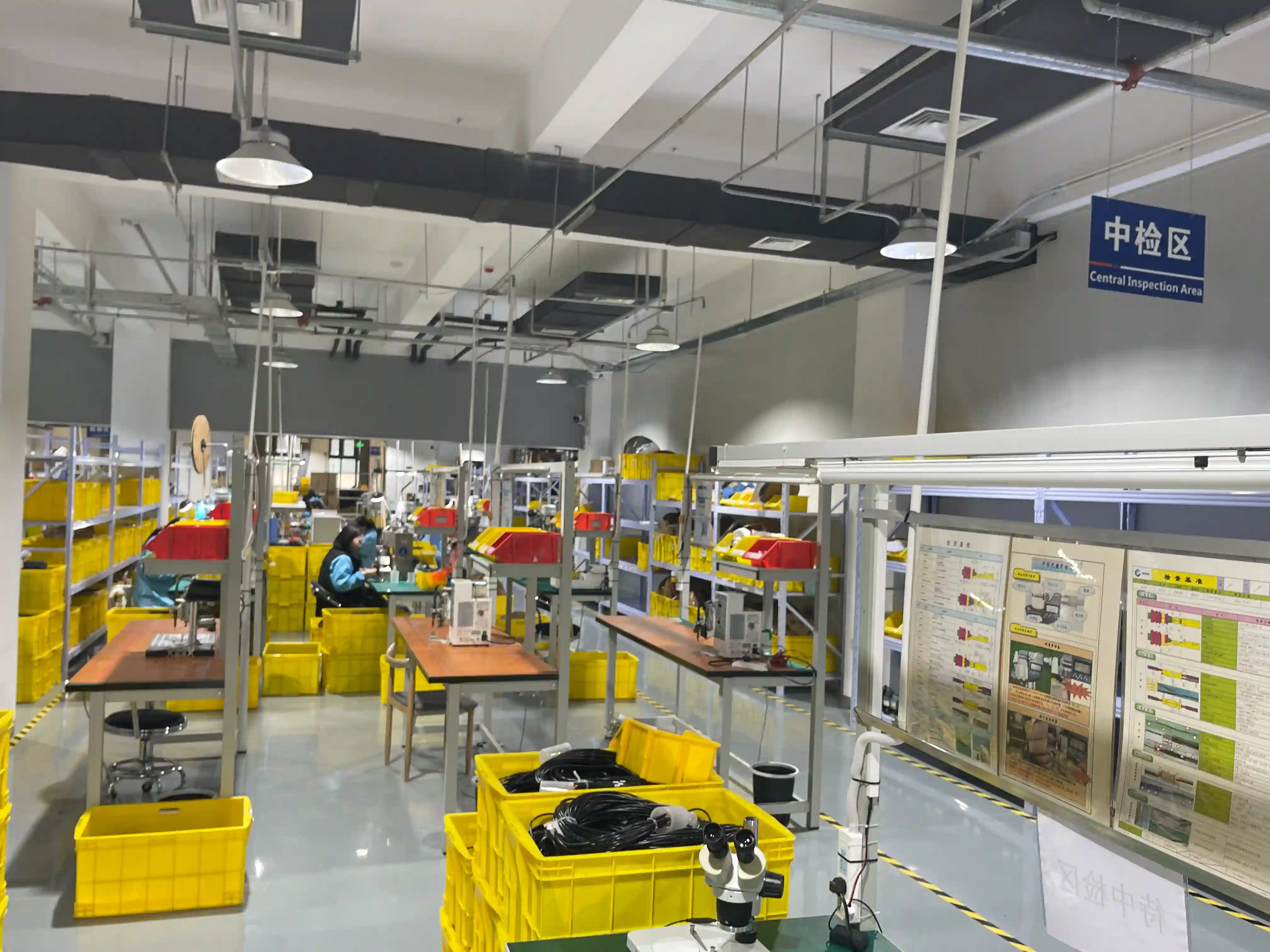

Quality testing equipment verifying wire harness tape adhesion and protection integrity
Frequently Asked Questions
What is the best tape for wrapping engine bay wire harnesses?
Woven cloth PET tape rated to 150°C (Class T4) with abrasion rating D or higher. Tesa 51036 and Coroplast 8370 are OEM-specified by Mercedes, BMW, and VW Group. Standard PVC tape softens above 105°C and should never be used for engine bay harness wrapping in any vehicle or mining equipment application.
I need to stop a dashboard wire harness from rattling — which tape should I use?
Non-woven fleece (felt) tape, specifically Tesa 51608 (0.3 mm) for standard dashboard routes or Tesa 51616 (0.8 mm) for heavier floor-pan harnesses. Apply with 50% overlap spiral wrap. Fleece is the only tape type engineered for NVH damping — PVC and cloth do not absorb vibration energy.
How do wire harness tape abrasion classes (A through F) work?
Classes follow the ISO 6722 scrape abrasion test. A weighted tool strokes across the tape under controlled pressure. Class A fails below 100 strokes (no protection). Class F survives over 15,000 strokes (extreme protection). For most Australian industrial harnesses, Class C (1,500+ strokes) is the minimum practical specification. Mining and defence applications require Class D or higher.
Can I use standard electrical tape instead of harness tape?
No. Standard 7-mil electrical tape lacks the adhesive longevity, abrasion resistance, and temperature stability required for harness applications. Under heat cycling, its adhesive migrates within months. Purpose-built harness tape from manufacturers like Tesa, Coroplast, and Nitto Denko uses formulated pressure-sensitive adhesives designed for 10+ year service life.
What is the correct overlap when spiral-wrapping a wire harness?
50% overlap is the standard for spiral wrapping, creating double-layer coverage. For straight, static runs inside conduit, 33% overlap is acceptable. At breakout points, junctions, and sharp-edge crossings, increase to 66% overlap. Always finish spirals with a 2 to 3 turn flag wrap to anchor the tape end. These requirements are defined in IPC/WHMA-A-620 workmanship standards.
Which harness tape brands do automotive OEMs specify?
Tesa (Germany) and Coroplast (Germany) dominate OEM specifications. Tesa 51036 (cloth), 51608 (fleece), and 51128 (PVC) cover most vehicle zones. Coroplast 837X series is BMW and VW Group standard. Nitto Denko supplies Japanese OEMs. All are available in Australia through RS Components, Element14, and specialist harness material distributors.
