Wire Harness Crimp Quality Inspection Guide

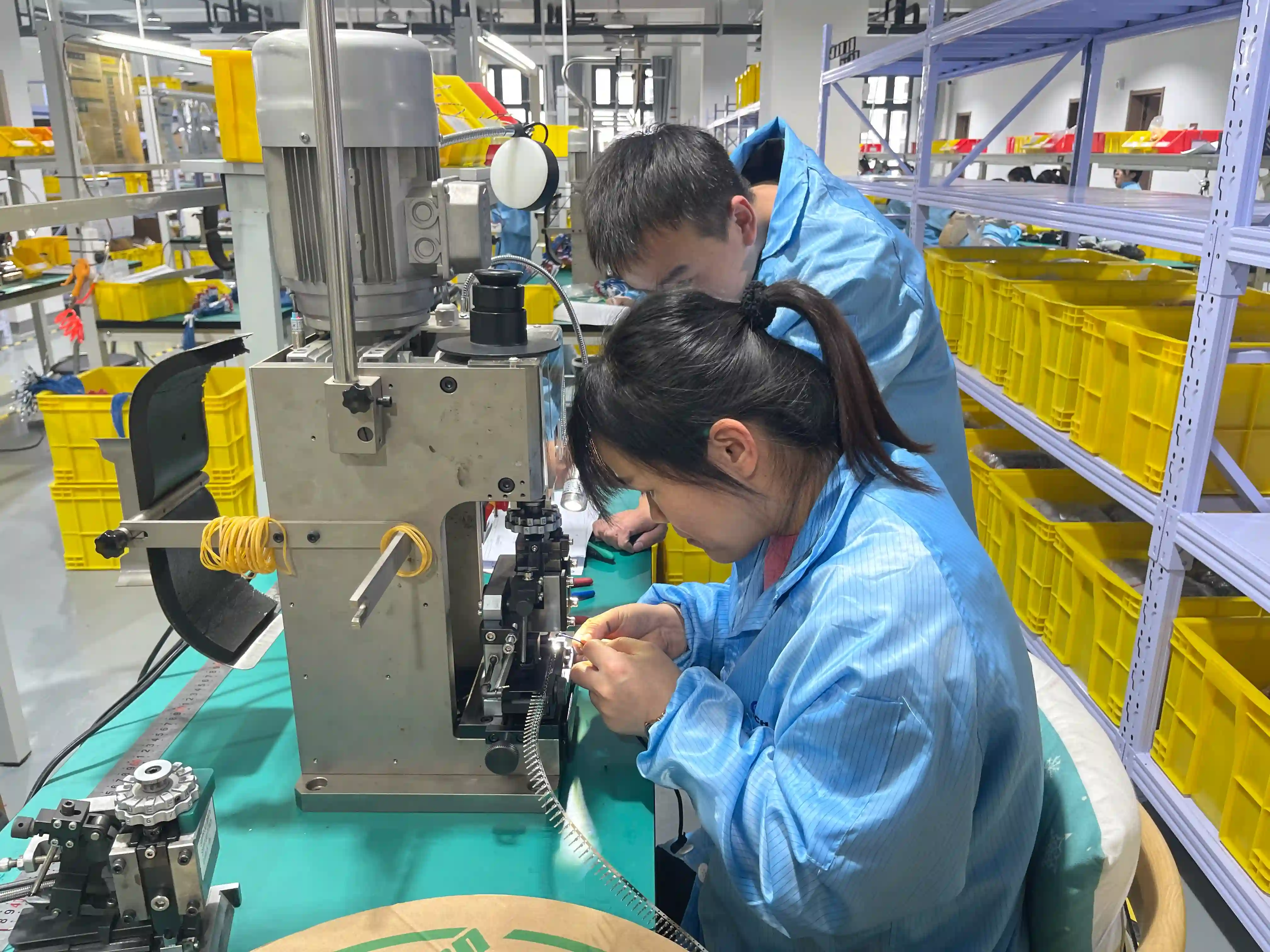

A crimp connection works by compressing the terminal barrel around stripped wire strands with enough force to plastically deform both the terminal metal and copper strands together. When done correctly, oxide layers break and copper-to-copper cold welds form at multiple contact points inside the barrel, creating a connection with lower resistance than a soldered joint and superior vibration resistance.

The problem is that a crimp either works perfectly or fails catastrophically — there is no middle ground. An under-crimped terminal may pass a continuity test on the production floor but vibrate loose in the field. An over-crimped terminal may cut through conductor strands, passing initial pull tests but fracturing under thermal cycling. Without systematic inspection, these defects escape into finished harnesses.

No single inspection method catches every crimp defect. Effective quality control uses a layered approach — combining non-destructive methods on 100% of crimps with periodic destructive testing to validate the process. The table below summarises the five methods and what each can detect.

Visual inspection is the first line of defence and should be performed on 100% of crimps. It is fast, non-destructive, and catches the most obvious defects — but it has limits. A crimp can look perfect visually yet fail a pull test due to insufficient compaction inside the barrel. Visual inspection is necessary but not sufficient on its own.

IPC/WHMA-A-620 specifies magnification requirements based on wire gauge. For 22 AWG and larger, 1.5× to 3× magnification is typically adequate. For smaller gauges (24–30 AWG), use 4× to 10× stereomicroscope magnification. Ensure consistent lighting — angled illumination reveals surface defects that overhead lighting masks.

Pull force testing is the gold standard for validating crimp mechanical integrity. A calibrated pull tester applies increasing axial force to the crimped wire until failure occurs — or until the minimum specified force is sustained for 60 seconds. The test is destructive (the crimp cannot be reused), so it is performed on sample crimps rather than 100% of production.

IPC/WHMA-A-620 Chapter 19 defines minimum pull force values by wire gauge. The wire must not pull free from the terminal at less than the specified force. The most common failure mode is "pull-out" — the wire slides out of the barrel without breaking — indicating insufficient crimp compression.

Crimp height is the single most reliable non-destructive predictor of crimp quality. It is the vertical distance from the base of the terminal barrel to the top of the crimped barrel, measured at the centre of the conductor crimp zone using a calibrated micrometer or go/no-go gauge. A crimp height within the manufacturer's tolerance correlates strongly with proper compaction and pull force.

The nominal crimp height and tolerance band are specified by the terminal manufacturer for each wire gauge and terminal combination. Typical tolerances are ±0.05 mm for small signal terminals and ±0.10 mm for larger power terminals. Crimp height trending — tracking measurements on a statistical process control (SPC) chart over time — reveals die wear before it produces out-of-tolerance crimps.

Crimp force monitoring is the most advanced non-destructive inspection method available for wire harness production. A piezoelectric sensor mounted on the crimp applicator measures the force applied to the terminal throughout the entire crimp stroke — capturing a force-vs-distance curve for every single crimp cycle. This "crimp signature" is compared against a reference envelope (the "golden crimp"), and any deviation triggers a reject signal within milliseconds.

CFM inspects 100% of crimps in real time without slowing the production line and without destroying any parts. It detects defects that are invisible to visual inspection and crimp height measurement, including missing strands, wrong wire gauge, partially stripped insulation, and gradual die wear. For automotive (IATF 16949) and aerospace production, CFM is effectively mandatory.

Cross-section analysis is the most detailed and definitive crimp inspection method. It involves slicing the crimped terminal perpendicular to the wire axis, polishing the cut surface, and examining it under a microscope at 10×–50× magnification. The micrograph reveals the internal geometry of the crimp — conductor compaction, void distribution, strand deformation, barrel wall symmetry, and burr dimensions — information that no external measurement can provide.

Cross-section analysis is destructive (the crimp is destroyed) and time-consuming (30–60 minutes per sample including preparation), so it is reserved for process qualification, first article inspection, and periodic validation. For IPC-620 Class 3 (high-performance) applications, cross-section analysis is required at process setup and after any die change.

Understanding what can go wrong is the foundation of effective inspection. The following defects are listed from most to least common in production environments. Each defect maps to specific inspection methods that can detect it.

IPC/WHMA-A-620 defines three acceptance classes, each with progressively stricter crimp inspection requirements. The class is specified by the end customer based on the product's reliability requirements. Understanding which class applies to your application determines the inspection methods and acceptance criteria you must follow.

How often should you inspect? The answer depends on your IPC class, production volume, and whether you have CFM. The following schedule represents industry best practice for a mixed-method inspection programme.
