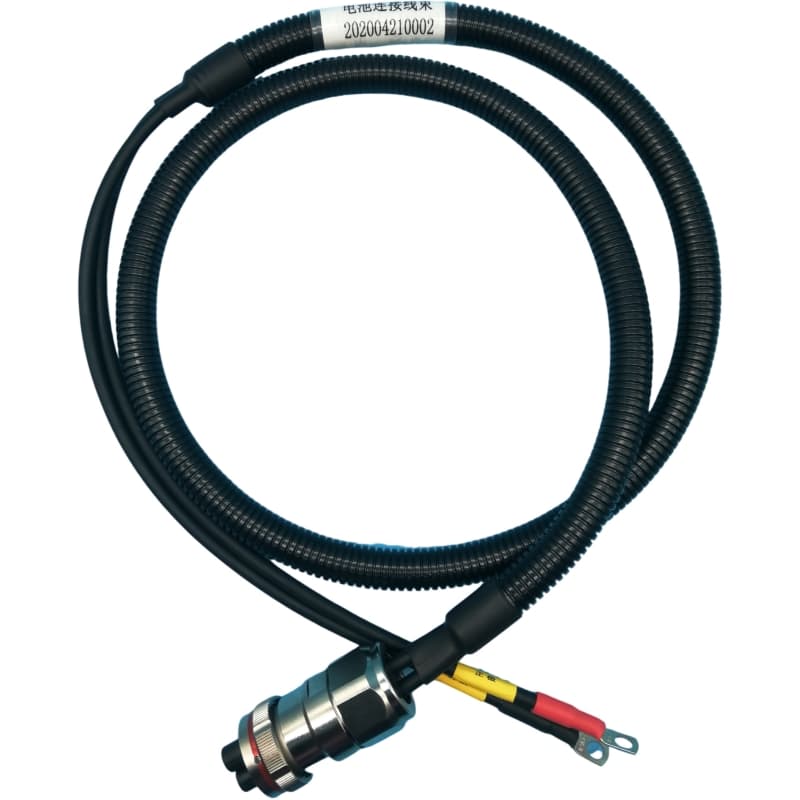

In motion-intensive applications like robotics, pick-and-place systems, and cable tracks, selecting the right flexible cable is critical for reliability. A standard cable may work perfectly when stationary but fail within weeks when subjected to continuous flexing. This guide explains flex life ratings, bend radius requirements, and how to select cables that will survive millions of motion cycles.
Understanding Flex Life
Flex life is defined by the number of flex cycles a cable can withstand before failure. A cycle typically equals one complete back-and-forth motion (e.g., 90° bend in each direction). Standard testing runs at 30 cycles per minute, or about 40,000 cycles per day.
Flex Life Categories
Critical Test Variables
- •Bend radius: Tighter = more stress
- •Travel distance: Length of motion path
- •Acceleration: Speed of direction change
- •Speed: Velocity during motion
- •Weight: Cable mass affects dynamics
Why Testing Conditions Matter
A cable rated for "5 million cycles" may fail much sooner if your application differs from test conditions:
- • Tighter bend radius than tested
- • Higher acceleration/deceleration
- • Different temperature range
- • Additional torsion or tension
- • Insufficient cable track support
Bend Radius Explained
Bend radius defines how tightly a cable can safely curve. It's expressed as a multiple of the cable's outer diameter (OD). Violating minimum bend radius is the leading cause of premature cable failure in motion applications.
| Application Type | Bend Radius | Example (10mm OD) | Use Case |
|---|---|---|---|
| Static Installation | 4-6× OD | 40-60mm radius | Fixed routing, no movement |
| Occasional Flex | 6-8× OD | 60-80mm radius | Door hinges, maintenance access |
| Continuous Flex | 10× OD | 100mm radius | Cable tracks, standard automation |
| High-Flex | 7.5× OD | 75mm radius | Robotics, high-cycle motion |
| Ultra High-Flex | 5× OD | 50mm radius | Compact robotics, tight spaces |
Why Bend Radius Matters
When a cable bends too tightly, the conductors on the outer curve stretch beyond their yield point. This causes cold hardening—the wire's internal structure changes, becoming brittle. Each cycle accelerates damage until conductors break.
Key Insight: The acceptable bend radius is proportional to wire diameter. Finer gauge wires (higher AWG numbers) can bend more tightly without cold hardening because they curve around a smaller radius relative to their size.
Types of Continuous Flexing Motion
Different motion types stress cables in different ways. Understanding your application's motion profile is essential for selecting the right cable.
1. Bending (C-Track)
Cable bends back and forth in one plane, typically with one end fixed. Most common in cable carriers and energy chains.
Requirements: 10× OD bend radius, high-flex jacket, fine-stranded conductors
2. Variable Flex
Both cable ends are fixed while the middle section bends freely as endpoints move. Common in gantry systems.
Requirements: Flexible along entire length, consistent bend radius throughout
3. Torsional Flex
Cable twists along its axis while potentially also bending and experiencing tension. Robot arms and turntables.
Requirements: Torsion-rated construction, special shield design, limited twist range
4. Rolling Flex
Cable forms a loop that rolls back and forth as the equipment moves linearly. Common in horizontal cable tracks.
Requirements: Uniform flexibility, self-supporting in unsupported spans
Cable Flex Rating Comparison
| Cable Type | Flex Cycles | Min Bend Radius | Stranding | Applications |
|---|---|---|---|---|
| Standard | 1,000-10,000 | 6× OD | 7 strands | Static wiring, panel connections |
| Flexible | 50,000-100,000 | 8× OD | 19 strands | Doors, hinges, service loops |
| Continuous Flex | 1-5 million | 10× OD | 40+ strands | Cable tracks, basic automation |
| High-Flex | 5-10 million | 7.5× OD | 66+ strands | Industrial robotics |
| Ultra High-Flex | 10+ million | 5× OD | 100+ strands | High-speed robotics, medical |
High-Flex Cable Construction
What makes a cable capable of millions of flex cycles? The answer lies in the construction details, particularly conductor stranding, shield design, and jacket material.
Conductor Stranding
High-flex wire uses base strands no larger than 40 AWG, compared to 36 AWG in standard flexible wire. Finer strands can bend around tighter radii without cold hardening.
Shield Design for Flex
Not Recommended for Flex
- • Foil only shields (fatigue quickly)
- • Standard braided shields (restrict flexibility)
- • Spiral shields with tight pitch
Flex-Optimized Shields
- • Loose-lay braided shields
- • Spiral serve with optimized pitch
- • Fine-strand braid construction
Jacket Materials
PVC
Basic flexibility, limited flex cycles
Best for: Occasional flexing
PUR (Polyurethane)
Excellent flex life, oil resistant
Best for: Cable tracks, robotics
TPE (Thermoplastic)
Superior flexibility, wide temp range
Best for: High-flex applications
Application Guidelines
Industrial Robotics
- Cycles: 5-20 million required
- Bend radius: 7.5× OD typical
- Motion: Torsional + bending combined
- Speed: Up to 5 m/s
- Special: Oil resistance, EMI shielding
Cable Track / Energy Chain
- Cycles: 1-5 million typical
- Bend radius: 10× OD minimum
- Motion: Rolling flex
- Speed: Up to 3 m/s
- Special: Self-supporting, abrasion resistant
CNC Machine Tools
- Cycles: 2-10 million
- Bend radius: 7.5-10× OD
- Motion: Variable flex
- Environment: Oil, coolant exposure
- Special: Chemical resistant jacket
Pick & Place Systems
- Cycles: 10+ million
- Bend radius: 5-7.5× OD
- Motion: High-speed bending
- Speed: Up to 10 m/s
- Special: Low mass, high acceleration
Preventing Flex Failures
Best Practices
- ✓Maintain minimum bend radius at all times
- ✓Use cable track with proper fill ratio (50-70%)
- ✓Allow cables to move freely, don't bundle tightly
- ✓Match cable rating to actual motion profile
- ✓Verify test conditions match your application
- ✓Use strain relief at fixed connection points
Common Mistakes
- ✗Using static-rated cable in motion applications
- ✗Exceeding minimum bend radius during installation
- ✗Overfilling cable track (>80% fill ratio)
- ✗Ignoring torsion requirements in robot arms
- ✗Trusting cycle ratings without checking test conditions
- ✗Mixing cable types in same cable track
"In robotics applications, we've seen expensive equipment fail within months because someone saved a few dollars on 'flexible' cable instead of specifying proper high-flex cable. The cable might cost 3x more, but it lasts 100x longer. Always match the cable to the motion profile—a 10 million cycle cable is useless if your robot exceeds the tested bend radius."
Frequently Asked Questions
What is the difference between flexible and continuous flex cable?
Flexible cable is designed for occasional movement during installation or maintenance (thousands of cycles). Continuous flex cable is engineered for constant motion in automation and robotics, rated for 1-20 million flex cycles. High-flex cables can exceed 10 million cycles with proper bend radius and cable track design.
How do I calculate minimum bend radius for a cable?
Minimum bend radius is typically expressed as a multiple of cable outer diameter (OD). For continuous flex applications, use 10× OD minimum. High-flex cables may allow 7.5× OD. Static installations can use 4-6× OD. Always check manufacturer specifications as requirements vary by cable construction.
What causes cable flex failure?
Cable flex failure is primarily caused by cold hardening—when conductors are bent beyond their yield point, causing internal structure changes that make wire brittle. Other causes include too-tight bend radius, jacket abrasion, shield fatigue, and improper cable track design.
How many flex cycles should a robotics cable handle?
Industrial robotics cables should handle 5-20 million flex cycles depending on application. A 6-axis robot arm may cycle 100,000 times daily, requiring cables rated for 10+ million cycles for multi-year service life. Test conditions (bend radius, speed, acceleration) must match actual application requirements.
