Rail & Transport Cable Assemblies Australia
Custom wire harnesses and cable assemblies engineered for rolling stock, signalling systems, platform infrastructure, and transport electrification. EN 45545-2 fire-safe materials, EN 50155 railway electronics compliance, and ruggedised construction for Australia's harshest rail environments.
- EN 45545-2 LSZH fire-safe materials
- EN 50155 railway electronics standard
- EN 61373 vibration & shock rated
- IPC/WHMA-A-620 Class 3 workmanship
Rail & Transport Applications
Precision cable assemblies for every rail platform and transport system
Rolling Stock & Trains
Metro trains, regional rail, freight locomotives, and trams
- Traction motor power cables
- HVAC control harnesses
- Door operator wiring
- Driver cab instrument panels
Signalling & Communications
Trackside and onboard signalling, ETCS, and CBTC systems
- Interlocking system cables
- Axle counter sensor harnesses
- Point machine wiring
- Trackside cabinet assemblies
Electrification & Power
Overhead catenary, third rail, and substation systems
- Traction power feeder cables
- Substation control harnesses
- Pantograph sensor wiring
- Auxiliary power unit cables
Passenger Information & CCTV
Displays, PA systems, CCTV, and passenger counting
- LCD display panel cables
- PA system wiring harnesses
- CCTV camera cables
- Emergency intercom wiring
Platform & Station Infrastructure
Platform screen doors, escalators, and fare gates
- Platform screen door harnesses
- Ticket gate control cables
- Platform lighting wiring
- Wayside equipment cables
Maintenance & Depot Systems
Depot infrastructure, test equipment, and workshop tooling
- Wheel lathe control cables
- Wash plant wiring harnesses
- Diagnostic test cables
- Shore power supply connectors
Railway Standards & Compliance
Built to the standards that rail safety authorities demand
Railway & Fire Safety Standards
- EN 45545-2 — Fire behaviour of railway rolling stock materials (HL1/HL2/HL3)
- EN 50155 — Electronic equipment on railway rolling stock
- EN 50121 — Railway EMC requirements for rolling stock and infrastructure
- EN 61373 — Shock and vibration testing for railway equipment
- IEC 60332 — Flame propagation tests for single and bunched cables
- AS 7657 — Rolling stock wiring (Australian standard)
- AS/NZS 3000 — Australian/New Zealand wiring rules
- IPC/WHMA-A-620 Class 3 — Highest workmanship acceptance level
Testing & Qualification
- EN 61373 Category 1 — Vibration and shock for body-mounted equipment
- EN 61373 Category 2 — Vibration and shock for bogie-mounted equipment
- IP67/IP68 — Ingress protection for outdoor and underfloor installations
- EMC testing — Conducted and radiated emissions per EN 50121
- Hipot testing — Dielectric withstand up to 5kV AC/DC
- Insulation resistance — >100 MΩ per conductor verification
- Temperature cycling — -40°C to +85°C (EN 50155 extended range)
- 100% continuity — Every circuit verified before shipment
Rail-Grade Materials & Construction
Fire safety is non-negotiable in rail. Every material in our railway cable assemblies is selected for low smoke, zero halogen performance, and resistance to the vibration, temperature extremes, and chemical exposure that rail environments demand. From the wire insulation to the outer jacket, every component meets or exceeds EN 45545-2 requirements.
LSZH (Low Smoke Zero Halogen) Jacketing
EN 45545-2 compliant materials that produce minimal smoke and no toxic halogen gases in a fire event — critical for passenger safety in enclosed carriages and tunnels
Cross-Linked Polyolefin Insulation
XLPE insulation rated -40°C to +125°C, resistant to oils, fuels, and hydraulic fluids found in rolling stock environments
Tinned Copper Conductors
Corrosion-resistant conductors that maintain reliable crimped connections under constant vibration and thermal cycling
Stainless Steel Braided Protection
Mechanical protection for cable assemblies routed under bogies or through exposed areas subject to ballast impact and debris
Rail-Rated Connectors
Amphenol, TE Deutsch, Harting Han, and M12 circular connectors qualified for railway vibration profiles and IP67+ sealing
Why Rail & Transport Companies Choose Us
Rail demands absolute reliability over 30+ year service lives. Here's how we deliver the quality and consistency your rolling stock and infrastructure programs require.
EN 45545-2 Fire Compliance
Passenger safety in tunnel emergencies depends on cable assemblies that don't produce toxic smoke. Every material in our rail harnesses — from the wire insulation to the outer jacket, heat shrink, and tie wraps — is selected for LSZH performance and certified to the appropriate EN 45545-2 Hazard Level for your application.
- LSZH materials throughout
- HL1/HL2/HL3 material certificates
- IEC 60332 flame propagation rated
- Third-party fire test reports
30-Year Service Life Design
Rolling stock operates for decades. Our cable assemblies are engineered for long-term reliability with corrosion-resistant materials, vibration-tolerant terminations, and UV-stable compounds for exposed installations. We design for the full service life of the vehicle, not just the warranty period.
- Crimped terminations (no solder joints)
- Corrosion-resistant tinned conductors
- UV-stabilised outdoor materials
- Abrasion-resistant conduit protection
Australian Engineering Support
Our Melbourne-based engineering team provides local technical support for Australian rail programs. From design review and DFM analysis to prototype qualification and production scale-up, we work in your timezone with fast turnaround on engineering changes and urgent spares requirements.
- Melbourne-based technical team
- Same-timezone collaboration
- Rapid prototype turnaround
- Engineering change order support
EMC Protection for Rail Systems
Railway environments are electromagnetically hostile. Traction inverters, pantograph arcing, and high-voltage switching create intense interference that can disrupt safety-critical signalling and control systems. Our cable assemblies are designed with proven shielding architectures that meet EN 50121 railway EMC requirements.
Braided Copper Shield
85-95% optical coverage for broadband EMI rejection from traction systems and inverter switching noise
Foil + Braid Combination
Dual-layer shielding for maximum EMC performance in signalling and safety-critical control cables
Twisted Shielded Pairs
Balanced signal transmission for ETCS data links, train control networks, and Ethernet backbone cables
360° Backshell Termination
Complete shield-to-connector bonding ensuring unbroken EMC integrity at every junction point
Built for Australia's Rail Environment
Engineered to perform from the Pilbara to Hobart, in tunnels and on open track
Environmental Ratings
- Operating temperature: -40°C to +85°C (EN 50155 OT4 extended)
- Humidity: up to 95% RH, condensing, per EN 50155
- IP67/IP68 sealed connectors for underfloor and bogie installations
- UV resistance: 10+ year outdoor exposure for wayside equipment
- Salt spray resistance: AS 2331.3 for coastal rail corridors
- Vibration: EN 61373 Category 1 and Category 2 qualified
- Shock: 30g per EN 61373 for coupler impact and shunting
- Chemical resistance: diesel, hydraulic fluid, coolant, brake dust
Construction Features
- LSZH insulated conductors per EN 45545-2 fire requirements
- Cross-linked polyolefin (XLPE) jacketing for oil and fuel resistance
- Stainless steel overbraid for mechanical protection under bogies
- Strain relief boots on all connectors for vibration resistance
- Crimped terminations per IPC/WHMA-A-620 Class 3 standards
- Corrugated conduit with LSZH fire rating for cable routing
- Laser-marked identification per customer labelling requirements
- Anti-chafe sleeving at all routing points and penetrations
Rail Manufacturing Process
Every rail cable assembly follows a controlled manufacturing process with documented inspection gates, 100% electrical testing, and full material traceability from raw material certificates to the finished assembly shipped to your production line.
Design Review & DFM Analysis
Engineering review against EN 50155, EN 45545-2 material compliance, connector specifications, and environmental requirements for your specific vehicle zone
Certified Material Procurement
Sourcing LSZH wire, railway-rated connectors, and fire-certified components with EN 45545-2 test certificates and full material traceability

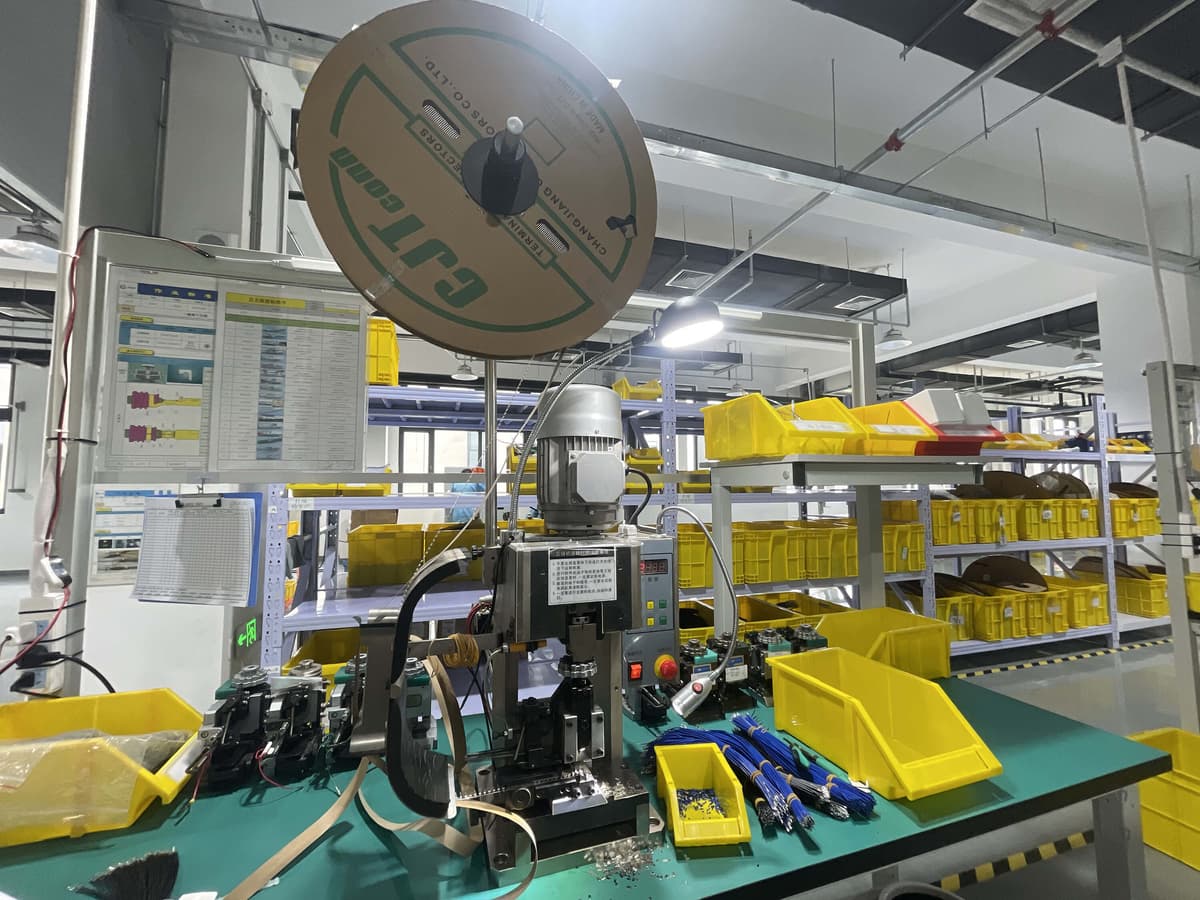

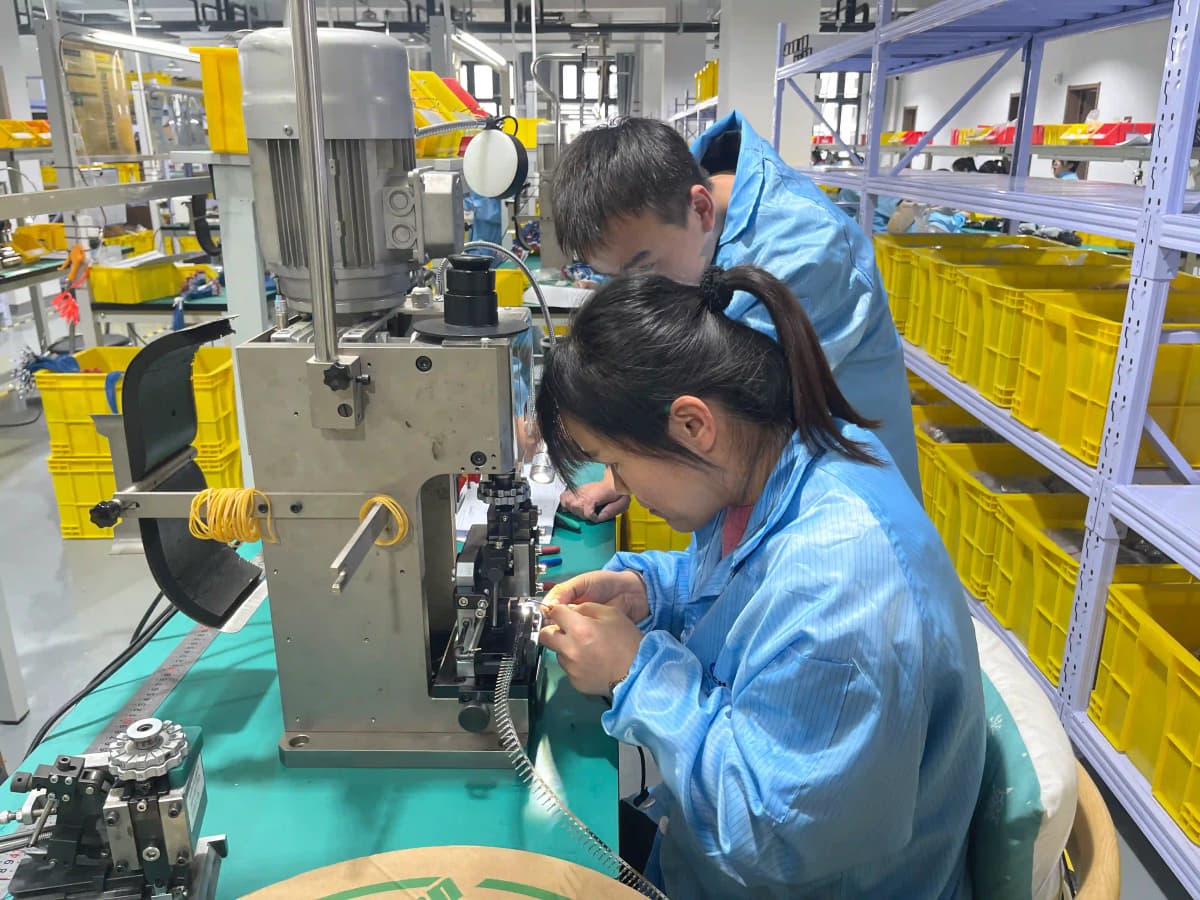

Controlled Assembly
Assembly on dedicated rail harness boards with calibrated crimp tools, ESD protection, and in-process inspection at each termination stage

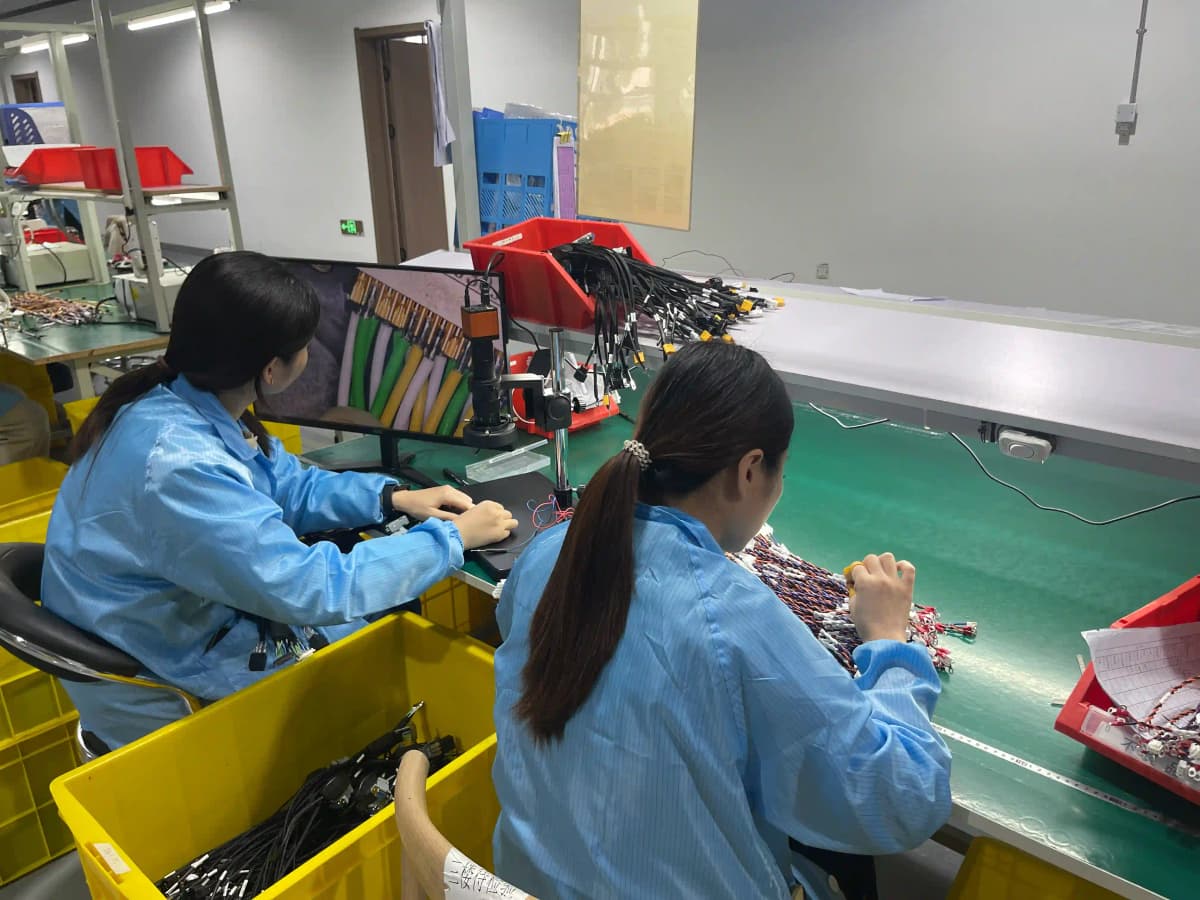

Electrical Testing & Verification
100% continuity, hipot, and insulation resistance testing. EMC pre-compliance screening for safety-critical signalling harnesses
Final Inspection & Documentation
IPC/WHMA-A-620 Class 3 visual inspection, dimensional verification, fire certificate package, and complete quality documentation
Supporting Australia's Rail Sector
Australia is investing heavily in rail infrastructure — from metropolitan metro systems to the Inland Rail freight corridor. We deliver the cable assemblies that keep these projects on schedule and within specification.
Metro & Commuter Rail
Cable assemblies for new metro trains, signalling upgrades, and platform infrastructure for Sydney Metro, Melbourne Metro Tunnel, and Brisbane Cross River Rail.
Freight & Heavy Haul
Ruggedised harnesses for freight locomotives, wagon systems, and the Inland Rail project. Designed for extreme vibration, dust, and temperature cycling.
Light Rail & Trams
Cable assemblies for light rail vehicles, tram systems, and trackless trams. Fire-safe materials for urban passenger environments.
Signalling & ETCS
EMC-qualified harnesses for ETCS Level 2, CBTC, and legacy signalling systems. Supporting Australia's digital rail transformation.
“Rail cable assemblies must survive 30+ years of continuous vibration, temperature cycling, and environmental exposure — while meeting the strictest fire safety standards in any industry. Every material choice matters. We build railway harnesses the same way our clients build trains: engineered for decades of reliable service, not just the next inspection.”
Hommer Zhao
Founder & Technical Director, Custom Wire Assembly
Rail Cable Assembly Specifications
Technical capabilities for railway and transport applications
| Specification | Capability |
|---|---|
| Fire Safety | EN 45545-2 HL1/HL2/HL3 certified LSZH materials |
| Temperature Range | -40°C to +125°C (wire), -40°C to +85°C (assemblies per EN 50155) |
| Vibration Rating | EN 61373 Category 1 (body) and Category 2 (bogie) |
| IP Protection | IP67 standard, IP68/IP69K available for underfloor/wash applications |
| Conductor Size | 0.22 mm² (24 AWG) to 95 mm² (3/0 AWG) power cables |
| Shielding | Braided, foil, spiral, or combination — up to 95% optical coverage |
| Connector Types | Deutsch DT/DTM, Harting Han, M12, M8, MIL-DTL-38999, Amphenol Rail |
| Wire Types | LSZH, XLPE, silicone, PTFE, PUR — all EN 45545-2 compliant options |
| Assembly Length | 100 mm to 30+ metres for vehicle backbone harnesses |
| Production Volume | Prototype (1-10 pcs) to high volume (10,000+ per month) |
| Certifications | ISO 9001, IPC/WHMA-A-620 Class 3, UL Listed |
| Lead Time | 1-2 weeks prototype, 3-5 weeks production |
Frequently Asked Questions
Common questions about rail & transport cable assembly solutions
Do your cable assemblies meet EN 45545-2 fire safety requirements for rail?
Yes, we manufacture cable assemblies using halogen-free, low-smoke zero-halogen (LSZH) materials that meet EN 45545-2 fire safety requirements for railway rolling stock. We select wire insulation, jacketing, and heat shrink materials rated to the appropriate Hazard Level (HL1, HL2, or HL3) based on your vehicle classification and installation location. All materials are third-party certified with test reports for smoke density, toxicity, and flame propagation.
Can you supply cable assemblies for Australian rail signalling systems?
Absolutely. We produce cable assemblies for trackside signalling cabinets, interlocking systems, point machines, axle counters, and wayside equipment. These assemblies are built with shielded cables for EMI protection, IP67 sealed connectors for outdoor enclosures, and UV-resistant jacketing for exposed installations. We support both legacy relay-based signalling and modern ETCS/CBTC digital signalling systems used on projects like Sydney Metro and Melbourne Metro Tunnel.
What connectors do you use for rail applications?
We work with all major railway connector families including Amphenol Rail, TE Connectivity Deutsch DT/DTP/DTM series, Harting Han industrial connectors, M12/M8 circular connectors for sensors and Ethernet, and MIL-DTL-38999 for high-reliability applications. Connector selection depends on the vibration profile, IP rating, and current/voltage requirements of each application.
What is your experience with Australian rail projects?
We supply cable assemblies for rail projects across Australia, supporting rolling stock manufacturers, signalling contractors, and infrastructure operators. Our Melbourne-based engineering team understands Australian rail standards including AS 7657 (rolling stock wiring), AS/NZS 3000, and state-specific requirements for metro, regional, and freight rail applications.
Do you offer prototyping for rail cable assemblies?
Yes, we offer rapid prototyping with 1-2 week turnaround for rail cable assemblies. This includes first article samples with full documentation, allowing you to validate fit, form, and function before committing to production quantities. We support design iterations and can scale from prototype to volume production of thousands of harnesses per month.
Can your cable assemblies withstand the vibration levels in rail applications?
Yes. Rail vehicles experience continuous vibration from track irregularities, traction systems, and braking events. Our cable assemblies are designed with strain relief, abrasion protection, and vibration-resistant terminations. We use crimped connections (not soldered) for reliability under vibration per EN 61373 shock and vibration categories, and all assemblies are secured with appropriate clamping and routing to prevent chafing.
